150kVA Industrial SDEC Diesel Generator with Soundproof Canopy
A-SH165S
Standby Power: 165/132 (KVA/KW)
Prime Power: 150/120 (KVA/KW)
Engine Model: 6HTAA6.5-G22
Engine Speed: 1500 RPM
Alternator Model: ASF274FS
Starting System: Electric
Cylinder: 6 Cylinder in line
Fuel Type: Diesel
Dimension:3200 * 1080 * 1500(L x W x H)
Weight: 1900kg
minimum order: 1 unit
Supply Ability: 500 units / Month
Country of Origin: China
Stock Time: 30-35 Days
Prime Power: 150/120 (KVA/KW)
Engine Model: 6HTAA6.5-G22
Engine Speed: 1500 RPM
Alternator Model: ASF274FS
Starting System: Electric
Cylinder: 6 Cylinder in line
Fuel Type: Diesel
Dimension:3200 * 1080 * 1500(L x W x H)
Weight: 1900kg
minimum order: 1 unit
Supply Ability: 500 units / Month
Country of Origin: China
Stock Time: 30-35 Days
Quantity
Production Description
This 150kVA (120kW) SDEC silent diesel generator (Model A-SH165-II) features a genuine SDEC engine and Hosem alternator, delivering reliable 400/230V three-phase power with low noise at 75dBA @ 7m. It comes standard with a Deepsea controller for full protection, ideal for industrial and backup power needs.
Generator Set Specification：
| Model | A-SH165-II | |
| Max. Power | kVA | 165.0 |
| kW | 132.0 | |
| Rate Power | kVA | 150.0 |
| kW | 120.0 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Dimension For Open-type Genset | mm | 2250 X 900 X 1420 |
| Weight For Open-type Genset | kg | 1200 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1900 |
| Noise Level at 7 Meters | dBA | 75 |
| Fuel Tank Capacity | Liters | 180 |
| Battery | Two of Free Maintenance Battery | |
Engine Specification：
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | 6HTAA6.5-G22 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 155 |
| Displacement | L | 6.500 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 124 |
| Lubrication Oil Capacity | L | 15-17.5 |
| Compression Ratio | 16 : 1 | |
| Intake Air Flow | M3/Min | 10.5 |
| Fuel Consumption at 100% Load | L/H | 33.1 |
Alternator Specification：
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. | |
| Alternator Model | ASF274FS | |
| Alternator Brand | Hosem | |
| Rate Output | kVA | 150 |
| Frequency | Hz | 50Hz |
| Current | A | 216.5 |
| Insulation | Class H | |
| Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Working Temperature without Output Decrease | ≤1000m | |
| Phase | 3 Phase | |
| Temperature Rise | 125 Degree Celsius | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |

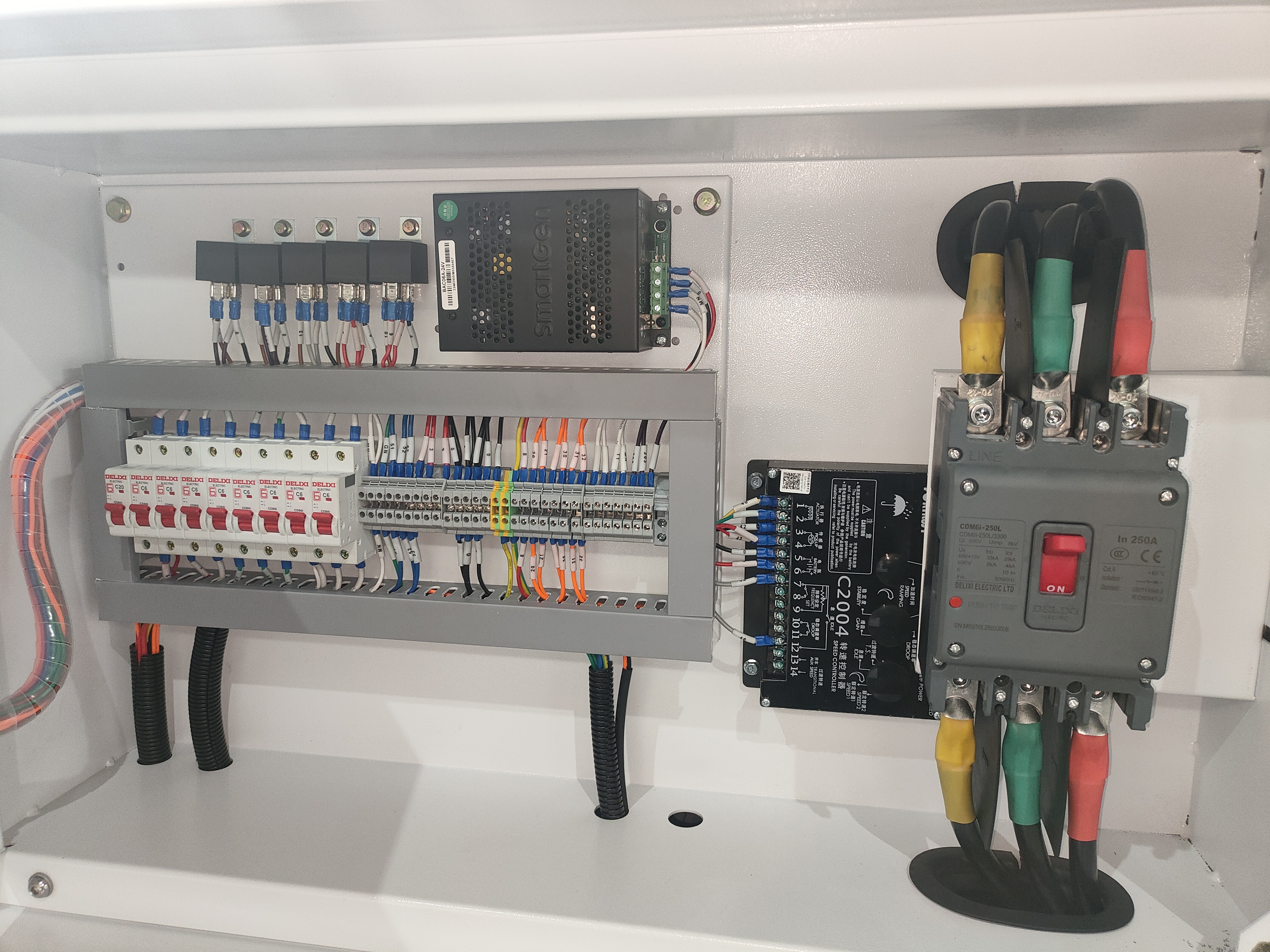

Control Panel Specification：
| Controller Brand | Deepsea | |
| Controller Model | DSE7320 | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 250 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with AMF Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Generator Details:
FQA：
Q1: What are the core application scenarios for the 150kVA Industrial SDEC Diesel Generator with Soundproof Canopy?
A: This industrial-grade silent generator is tailored for high-power demand scenarios, including large-scale industrial production workshops, commercial complex standby power, hospital data center backup, construction site intensive power supply, and outdoor large-scale project operations. Its stable output and low-noise design make it suitable for both indoor and outdoor environments, ensuring uninterrupted power for critical systems.
Q2: Which engine model is adopted for this 150kVA SDEC generator, and what ensures its long-term stable operation?
A: It is equipped with the SDEC 6HTAA6.5-G22 engine—a 6-cylinder in-line turbocharged and air-to-air aftercooled design. With a maximum output of 155kW, low fuel consumption (33.1L/h at full load), excellent heat dissipation, and a rigid structural design, it maintains consistent power output even under high-load and variable operating conditions, ensuring reliable continuous or standby operation over long periods.
Q3: What noise reduction effect does the soundproof canopy achieve, and which noise-sensitive environments is it suitable for?
A: The professional soundproof canopy reduces noise to 75dBA at 7 meters, far lower than industrial noise standards. It is ideal for noise-sensitive environments such as residential areas adjacent to industrial zones, urban commercial complexes, healthcare institutions, and office buildings, where low-noise operation is essential to avoid disrupting daily operations.
Q4: What optional configurations are available for this 150kVA SDEC industrial silent generator?
A: Customizable optional features include ATS (automatic transfer switch) with AMF function, industrial-grade brushless alternator upgrades (Leroy Somer/Marathon optional), DeepSea/Smartgen/ComAp high-end controllers, extended fuel tanks for long-duration operation, enhanced IP65 protection level, and remote monitoring systems. These options allow tailoring the generator to specific industrial power demands.
Q5: Can the technical team customize this 150kVA SDEC generator to meet project-specific requirements?
A: Yes, the professional technical team provides full customization services. We can adjust the generator’s configuration based on your project needs, including selecting open/soundproof types, upgrading alternator brands and control panel models, customizing exterior colors and anti-corrosion coatings, and modifying functional modules (such as additional communication interfaces or multi-machine parallel systems) to match unique on-site power supply demands.
