63kVA Quanchai Diesel Generator with Soundproof Canopy
A-QC69S
Standby Power: 69/55 (KVA/KW)
Prime Power: 63/50 (KVA/KW)
Engine Model: QC498ZLD
Engine Speed: 1600 RPM
Alternator Model: ASF 224FS
Starting System: Electric
Cylinder: 4 Cylinder in line
Fuel Type: Diesel
Dimension:2500*1000*1200 (L x W x H)
Weight: 950kg
minimum order: 1 unit
Supply Ability: 500 units / Month
Country of Origin: China
Stock Time: 30-35 Days
Prime Power: 63/50 (KVA/KW)
Engine Model: QC498ZLD
Engine Speed: 1600 RPM
Alternator Model: ASF 224FS
Starting System: Electric
Cylinder: 4 Cylinder in line
Fuel Type: Diesel
Dimension:2500*1000*1200 (L x W x H)
Weight: 950kg
minimum order: 1 unit
Supply Ability: 500 units / Month
Country of Origin: China
Stock Time: 30-35 Days
minimum order
1 piece
Country of Origin
China
Quantity
Product Description
This 50kW (63kVA) Quanchai diesel generator (Model A-QC69S) features a genuine Quanchai engine and Hosem alternator, delivering stable 400/230V three-phase power with low noise at 70dBA @ 7m. Equipped with a Smartgen controller for full protection, it’s an efficient and reliable solution for backup and industrial power needs.
Generator Set Specification:
| Model | A-QC69S | |
| Max. Power | kVA | 69 |
| kW | 55 | |
| Rate Power | kVA | 63 |
| kW | 50 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 90.9 |
| Dimension For Open-type Genset | mm | 1800 X 850 X 1050 |
| Weight For Open-type Genset | kg | 600 |
| Dimension For Soundproof Genset | mm | 2500 X 1000 X 1200 |
| Weight For Soundproof Generator | kg | 950 |
| Noise Level at 7 Meters | dBA | 70 |
| Fuel Tank Capacity | Liters | N.A. |
| Battery | One of Free Maintenance Battery | |
Engine Specification:
| Engine Manufacturer | Anhui Quanchai Engine Co., Ltd. | |
| Engine Brand | Quanchai | |
| Engine Model | QC498ZLD | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 58 |
| Displacement | L | 3.470 |
| Starting Voltage | V | 12 |
| Bore | mm | 98 |
| Stroke | mm | 115 |
| Lubrication Oil Capacity | L | N.A. |
| Compression Ratio | 18 : 1 | |
| Intake Air Flow | M3/Min | N.A. |
| Fuel Consumption at 100% Load | L | 14.8 |
Alternator Specification:
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. | |
| Alternator Model | ASF224FS | |
| Alternator Brand | Hosem | |
| Rate Output | kVA | 67 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Voltage Regulation | SX460 | |
| Protection Grade | IP23 | |
| Working Temperature without Output Decrease | ≤40℃ | |
| Phase | 3 Phase | |
| Temperature Rise | 125 Degree Celsius | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |

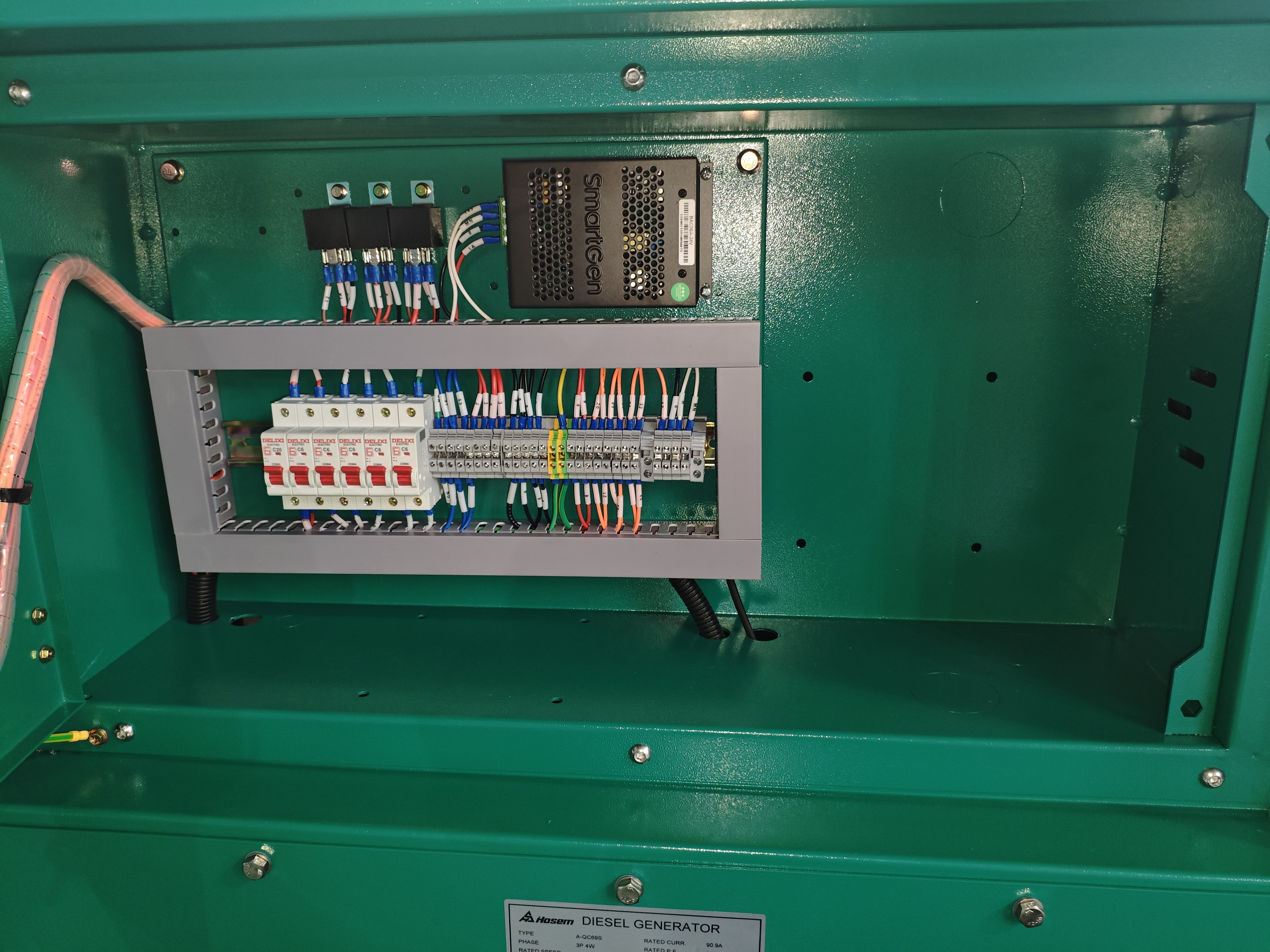

Control Panel Specification:
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 32 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with AMF Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
FQA:
Q1: What are the typical application scenarios of Quanchai industrial diesel generators?
A1: Quanchai industrial diesel generators are widely used in scenarios such as industrial production, commercial operations, emergency backup power, construction sites and open-air factories, providing continuous and reliable power support under critical working conditions.
Q2: What protection grade does the 50kW Quanchai diesel genset offer?
A2: The 50kW Quanchai diesel genset adopts an IP23 protection grade, which can resist mild dust and moisture intrusion, and is suitable for complex outdoor working environments such as construction sites and open-air factories.
Q3: Is there a soundproof version available for Quanchai diesel generators?
A3: Yes, Quanchai diesel generators offer both open-type and soundproof-type models. The soundproof version can effectively control the noise at 7 meters to 70 dBA, which is suitable for noise-sensitive environments such as residential areas and hospitals.
Q4: What optional configurations are available for Quanchai diesel generators?
A4: Optional configurations include ATS (automatic transfer switch) receptacle, remote control system, virtual load cabinet, stainless galvanized zinc plates with strong corrosion resistance, water jacket preheater, oil heater, double air cleaner, etc., which can meet the diverse customization needs of customers.
Q5: Can we customize the product?
A5: We have a very experienced technical team, we can customize any product according to your requirements.
