Generator 25kva Single Phase Three Phase Generator With FAW Engine Stamford Alternator

A-XC28

Main Specification:
Standby Power: 28/22 (KVA/KW)
Prime Power: 25/20 (KVA/KW)
Consumption 100%: 7.3L/H
Open Type Dimension (L×W×H) : 1270 X 700 X 1250mm
Weight: 550KG
Silent Type Dimension (L×W×H) : 1780 X 850 X 1150mm
Weight: 750KG

Quantity

Contact Now

add to cart

When reliability is paramount, look no further than our 25kVA FAW Diesel Generator. It's not just a power source; it's your assurance of dependable performance. Here's what sets it apart:

Reliable Performance: Built by one of China's most trusted engine manufacturers, the FAW Diesel Generator is engineered for unwavering performance. Its robust construction ensures it can withstand demanding conditions, making it ideal for both standby and prime power applications. Count on it to deliver when you need it most.

Low Noise Operation: Our FAW Diesel Generator is designed to be a silent partner in your power needs. The 2mm-thick canopy and 3cm-thick sound-absorbing materials ensure that it operates with minimal noise. Whether it's for residential or commercial use, enjoy power without the disturbance.

Low Fuel Consumption: Efficiency is at the heart of our FAW generator. It optimizes fuel consumption, ensuring that you get more power for less. This not only saves you money but also reduces your environmental footprint.

Trust in the reliability, quiet operation, and fuel efficiency of our 25kVA FAW Diesel Generator. It's more than just a generator; it's the embodiment of quality in every aspect.
Empower your space with performance you can rely on. Contact us today to explore this impressive generator and request a quote.

About Hosem Power

Generator Set Specification
Model		A-XC28
Max. Power	kVA	28.0
Max. Power	kW	22.0
Rate Power	kVA	25.0
Rate Power	kW	20.0
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	36.1
Dimension For Open-type Genset	mm	1350 X 750 X 1280
Weight For Open-type Genset	kg	578
Dimension For Soundproof Genset	mm	1780 X850 X 1150
Weight For Soundproof Generator	kg	900
Noise Level at 7 Meters	dBA	72
Fuel Tank Capacity	Litres	80
Battery		One of 80A Free Maintenace Battery

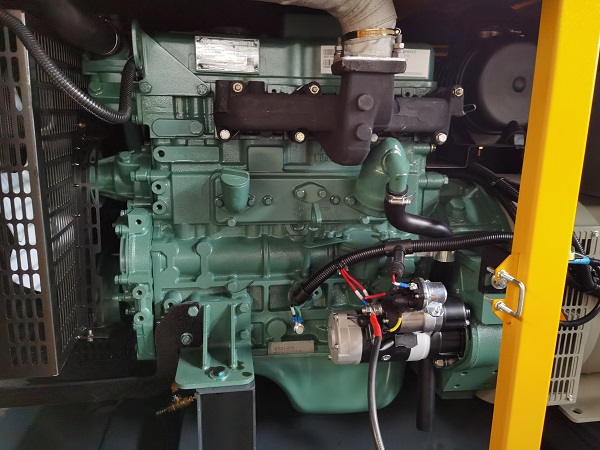

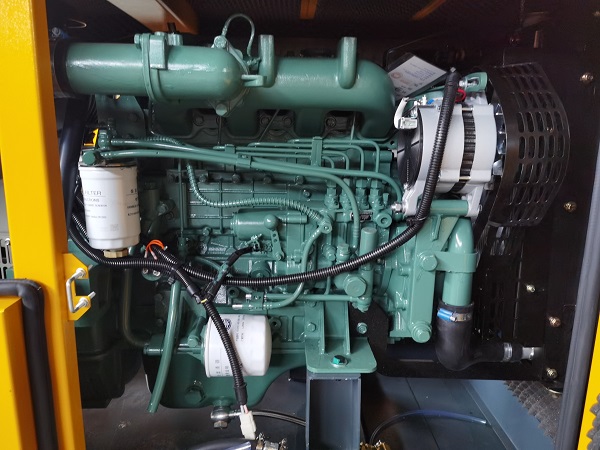

Engine Specification
Engine Manufacturer		Faw Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works
Engine Brand		Fawde
Engine Model		4DW92-35D
No. of Cylinder		4 Cylinder in line
Aspiration		Turbocharged
Governor		Mechanical
Engine Max. Output Power	kW	29
Displacement	L	2.540
Starting Voltage	V	12
Bore	mm	90
Stroke	mm	100
Lubrication Oil Capacity	L	8
Compression Ratio		17 : 1
Intake Air Flow	M3/Min	2.1
Fuel Consumption at 100% Load	L/H	7.3

Alternator Specification
Alternator Manufacturer		Cummins Technologies
Alternator Model		PI 144E
Alternator Brand		Stamford
Rate Output	kVA	25
Frequency	Hz	50Hz
Current	A	36.1
Insulation		Class H
Voltage Regulation		SX460
Protection Grade		IP23
Working Temperature without Output Decrease		≤1000 m
Phase		3 Phase
Temperature Rise		125 Degree Celsius
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand	ComAp
Controller Model	IL-AMF9
Breaker Brand	Delixi
Breaker Capacity	A	63
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
Mains Monitor	Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Model	Standby Power		Prime Power		Engine Model	Governor	Dimension (Open Type)	Dimension Silent Type	Noise Level (7 M)
Model	kVA	kW	kVA	kW	Engine Model	Governor	L×W×H(MM)	L×W×H(MM)	dB(A)
A-XC16	16	13	15	12	4DW81-23D	Mechanical	1280×750×1280	2008×900×1130	72
A-XC22	22	18	20	16	4DW91-29D	Mechanical	1280×750×1280	2008×900×1130	72
A-XC28	28	22	25	20	4DW92-35D	Mechanical	1350×750×1280	2008×900×1130	72
A-XC32	32	26	29	23	4DW92-39D	Electric	1350×750×1280	2008×900×1130	72
A-XC34	34	27	31	25	4DX21-45D	Mechanical	1750×800×1150	2388×1000×1450	72
A-XC40	40	32	36	29	4DX22-50D	Mechanical	1750×800×1150	2388×1000×1450	72
A-XC60	60	48	55	44	4DX22-65D	Electric	1750×800×1150	2388×1000×1450	72
A-XC66	66	53	60	48	4DX23-78D	Electric	2200×920×1210	2388×1000×1450	72
A-XC75	75	60	68	55	4110/125Z-09D	Electric	2250×920×1300	2388×1000×1450	72
A-XC100	100	80	91	73	CA4DF2-12D	Electric	2250×920×1300	2538×1000×1450	72
A-XC110	110	88	100	80	CA6DF2D-14D	Mechanical	2450×920×1350	3288×1130×1850	72
A-XC138	138	110	125	100	CA6DF2-17D	Mechanical	2450×920×1350	3288×1130×1850	75
A-XC165	165	132	150	120	CA6DF2-19D	Electric	2450×920×1350	3288×1130×1850	75
A-XC206	206	165	187	150	CA6DL1-24D	Electric	2650×1050×1650	3588×1180×2150	75
A-XC250	250	200	227	182	CA6DL2-27D	Electric	2690×1050×1650	3588×1180×2150	75
A-XC275	275	220	250	200	CA6DL2-30D	Electric	2690×1050×1650	3588×1180×2150	78
A-XC338	338	270	307	246	CA6DM2J-39D	Electric	3000×1150×1650	3988×1400×2250	78
A-XC350	350	280	318	255	CA6DM2J-41D	Electric	3000×1150×1650	3988×1400×2250	78
A-XC440	440	352	400	320	CA6DM3J-48D	Electric	3000×1150×1650	4218×1400×2250	78
