Isuzu Diesel Generator 28kVA, 30kVA Silent Generator
A-I30H / PRP: 28kVA , ESP: 30kVA
Main Specification:
Standby Power: 30kVA/24kW
Prime Power: 28kVA/22kW
Consumption 100%: 6.99L/H
Open Type Dimension (L×W×H): 1450 X 680 X 1000mm
Weight: 480KG
Silent Type Dimension (L×W×H): 2050 X 860 X 1100mm
Weight: 890KG
Standby Power: 30kVA/24kW
Prime Power: 28kVA/22kW
Consumption 100%: 6.99L/H
Open Type Dimension (L×W×H): 1450 X 680 X 1000mm
Weight: 480KG
Silent Type Dimension (L×W×H): 2050 X 860 X 1100mm
Weight: 890KG
Quantity
Specification
Generator Set
Max. Power: 30kVA / 24kW
Rate Power: 28kVA / 22kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 1450 X 680 X 1000mm
Weight For Open-type Genset: 480kg
Dimension For Soundproof Genset: 2050 X 860 X 1100mm
Weight For Soundproof Generator: 890kg
Rate Power: 28kVA / 22kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 1450 X 680 X 1000mm
Weight For Open-type Genset: 480kg
Dimension For Soundproof Genset: 2050 X 860 X 1100mm
Weight For Soundproof Generator: 890kg

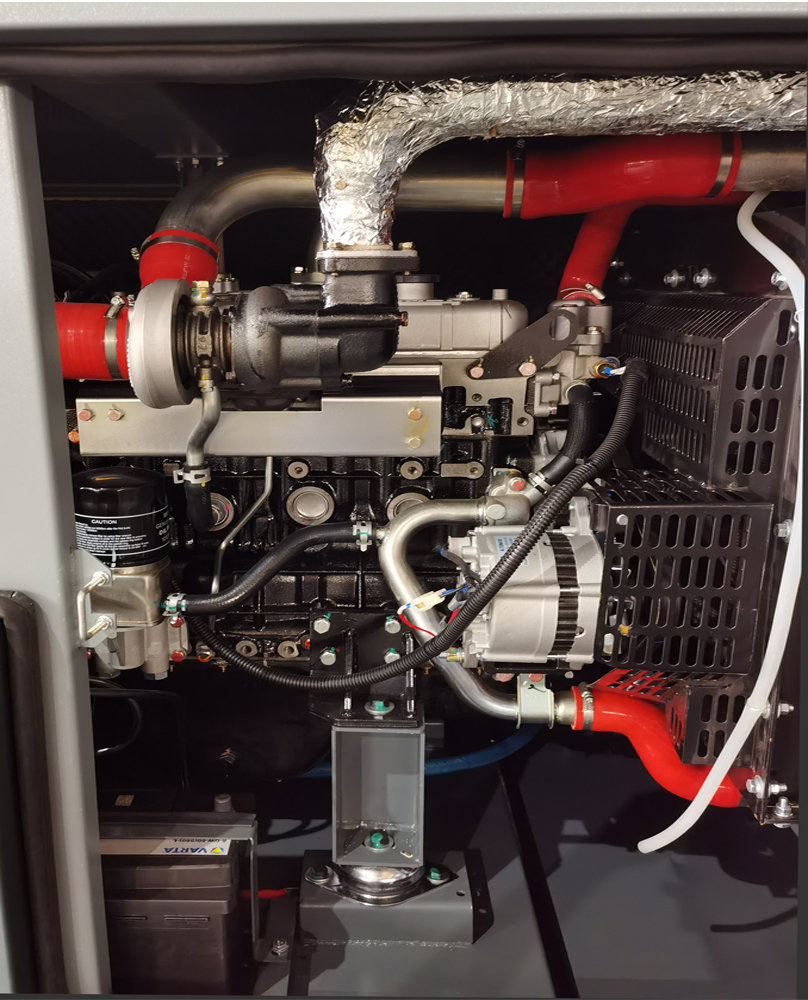

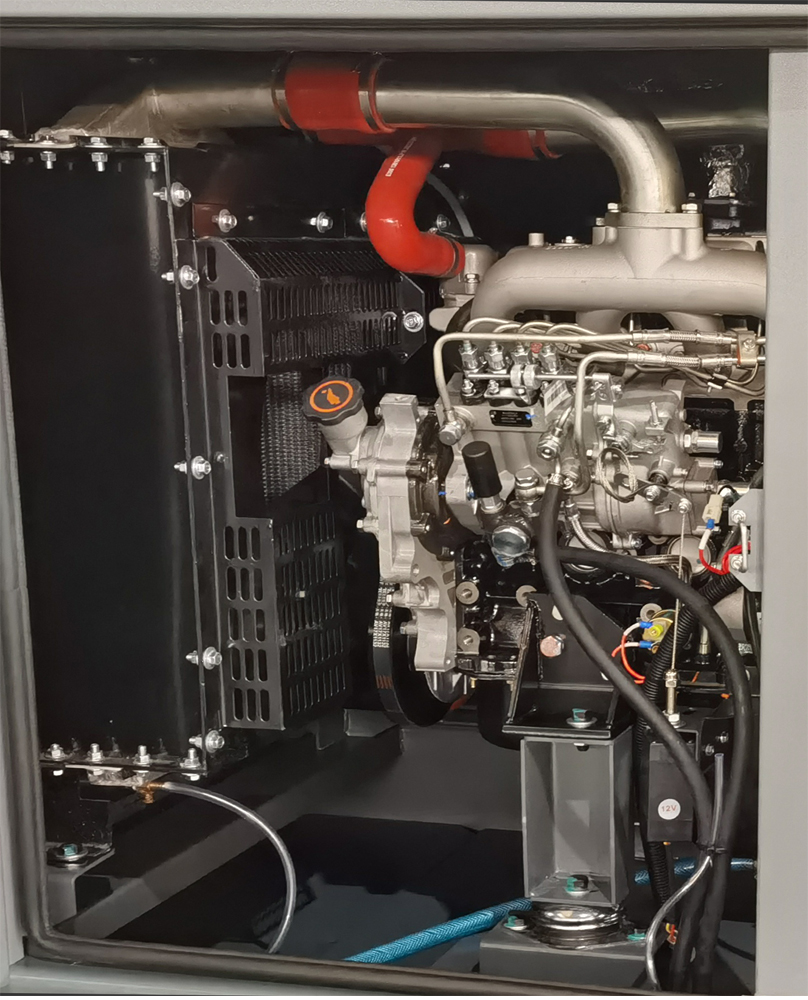

Engine
Engine Manufacturer: JIANGXI ISUZU ENGINE CO., LTD
Engine Brand: Isuzu
Engine Model: JE493DB-01
No. of Cylinder: 4 Cylinder in line
Aspiration: Naturally Aspirated
Governor: Mechanical
Engine Max. Output Power: 31kW
Engine Manufacturer: JIANGXI ISUZU ENGINE CO., LTD
Engine Brand: Isuzu
Engine Model: JE493DB-01
No. of Cylinder: 4 Cylinder in line
Aspiration: Naturally Aspirated
Governor: Mechanical
Engine Max. Output Power: 31kW
Alternator
Alternator Model: ASF184E
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
The 28kva Isuzu diesel generator is a reliable power source ideal for a variety of applications and equipped with a world-famous --first-class alternator to supply excitation in many cases. The Isuzu engine water-cooled diesel generator also features a standard control panel design basic to the operation and easily shows all meters you care about during the generator's working time.
Standard Configurations
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
Details
