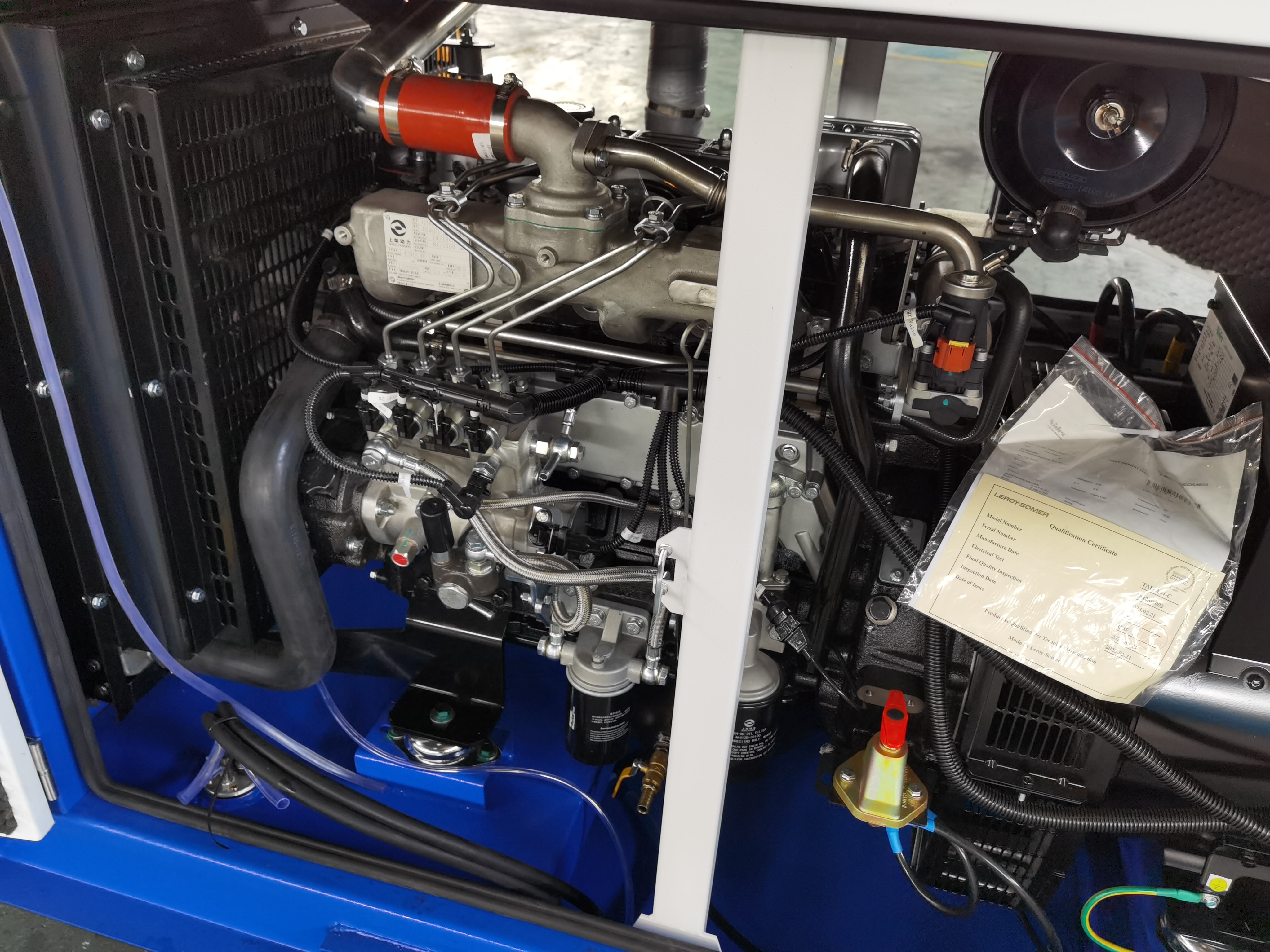

100kVA Electric Diesel Generator By SDEC Engine Soundproof Type 80kW With CE For Reliability



1.Our 100kVA Electric Diesel Generator, powered by a reliable SDEC engine. SDEC is a leading diesel engine manufacturer in China, and its engines meet international emission standards. Currently, SDEC products have been sold to many countries and regions around the world and are one of the well-known brands in the international market.

2.Get the best 110kva reliable generator brands with our SDEC Engine Soundproof 80kW diesel genset with CE Certification. Perfect for home and industrial use. With SDEC engines for backup power, you can depend on consistent energy supply when the main power source fails.

3.SDEC soundproof diesel generator can be configured to effectively reduce noise, protect the unit from external environment, such as wind and rain. The design of Hosem Power's silent diesel generator fully considers the heat dissipation requirements and is equipped with a reliable air intake and exhaust system.
4.We provide 1000 hours or 1 year warranty, and also provide customers with spare parts, such as daily consumption filters, aftermarket and original parts are available.

5.We have many years of expertise in diesel generator manufacturing and exporting, contact us to learn more about our 100kVA electric diesel generators or to request a quote!





Generator Set Specification
Model		A-SH110
Max. Power	kVA	110.0
	kW	88.0
Rate Power	kVA	100.0
	kW	80.0
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	144.3
Dimension For Open-type Genset	mm	2000 X 900 X 1420
Weight For Open-type Genset	kg	1050
Dimension For Soundproof Genset	mm	3100 X 1100 X 1700
Weight For Soundproof Generator	kg	1550
Noise Level at 7 Meters	dBA	70
Fuel Tank Capacity	Litres	190
Battery		Two of Free Maintenance Battery



Engine Specification
Engine Manufacturer		Shanghai Diesel Engine Co., Ltd.
Engine Brand		SDEC
Engine Model		SC4H140D2
No. of Cylinder		4 Cylinder in line
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	105
Displacement	L	4.300
Starting Voltage	V	24
Bore	mm	105
Stroke	mm	124
Lubrication Oil Capacity	L	15
Compression Ratio		16 : 1
Intake Air Flow	M3/Min	7.39
Fuel Consumption at 100% Load	L/H	23.0

Control Panel Specification
Controller Brand	Smartgen
Controller Model	HGM6120
Breaker Brand	Delixi
Breaker Capacity	A	160
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
Mains Monitor	Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Alternator Specification
Alternator Manufacturer		Fuzhou Hosem Power Co., Ltd.
Alternator Model		ASF 274 C
Alternator Brand		Hosem
Rate Output	kVA	100
Frequency	Hz	50Hz
Current	A	144.3
Insulation		Class H
Voltage Regulation		SX460
Protection Grade		IP23
Working Temperature without Output Decrease		≤1000m
Phase		3 Phase
Temperature Rise		125 Degree Celsius
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional
