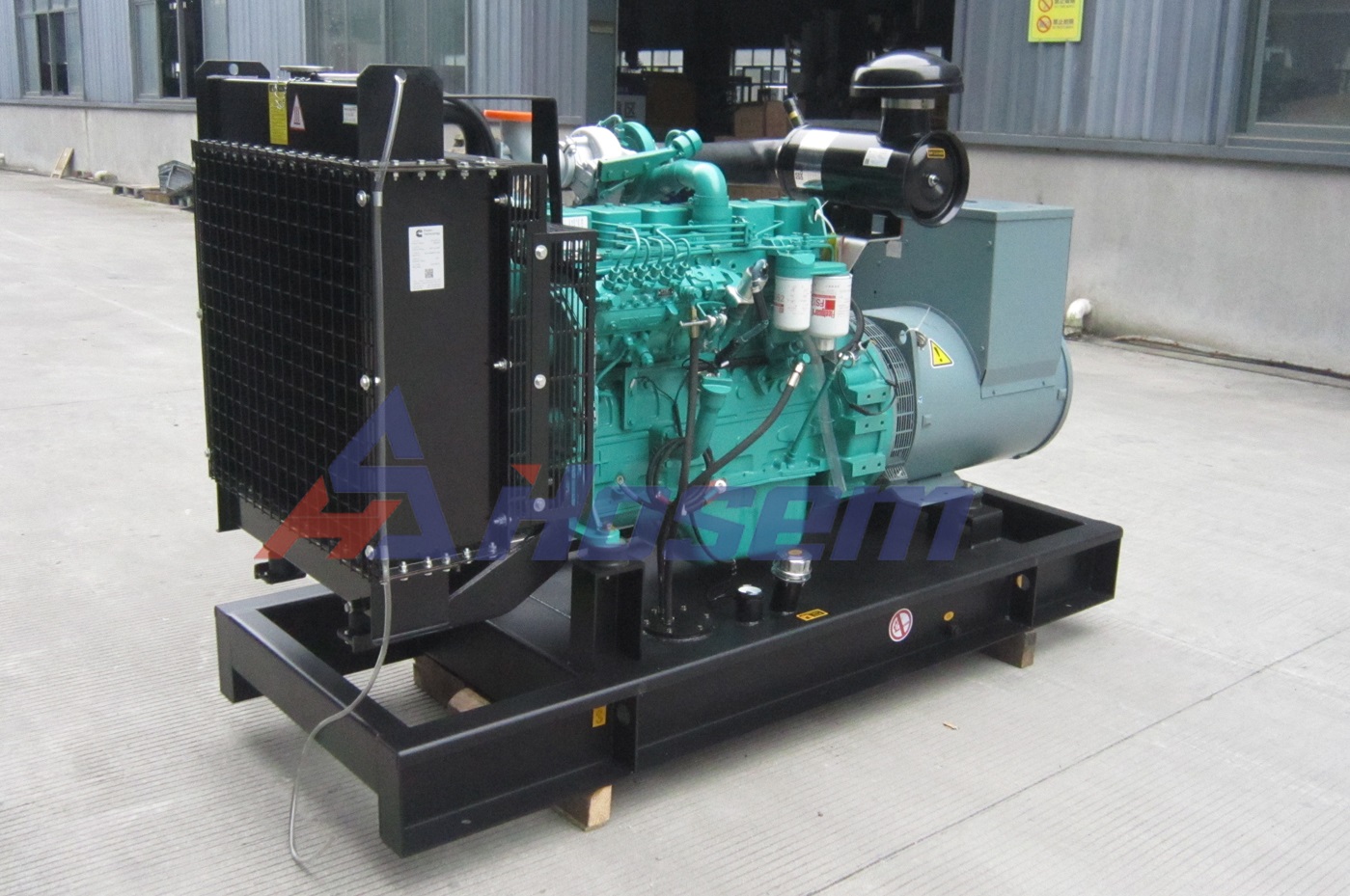

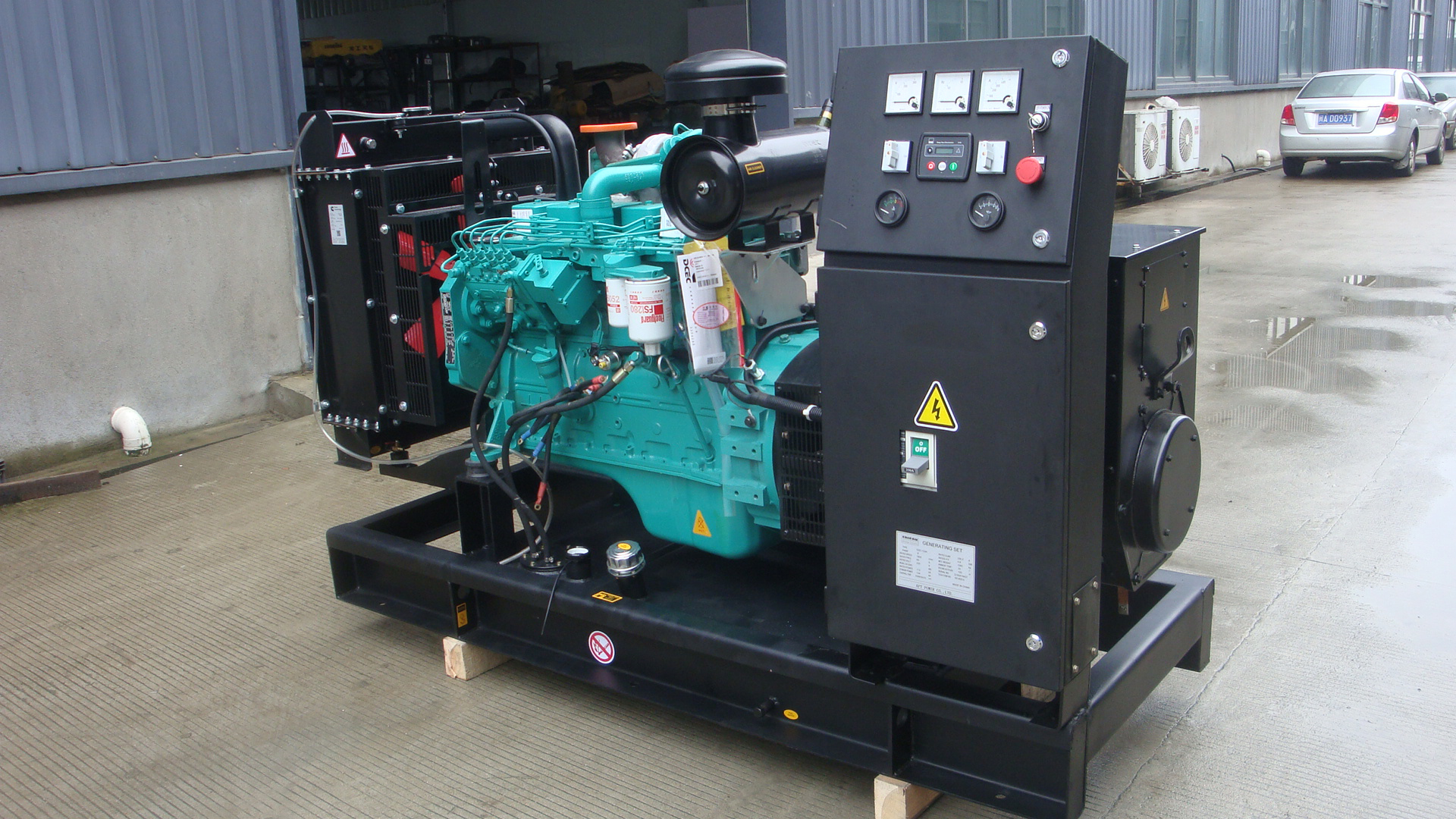

Cummins Power Generator 125kVA, 100kW Diesel Generator
A-C138 / PRP: 125kVA , ESP: 138kVA
Main Specification:
Standby Power: 138/110 (KVA/KW)
Prime Power: 125/100 (KVA/KW)
Consumption 100%: 27L/H
Open Type Dimension (L×W×H) : 2300 X 820 X 1450 mm
Weight: 1250KG
Open Type Dimension (L×W×H) : 2900 X 1080 X1500mm
Weight: 1920KG
Standby Power: 138/110 (KVA/KW)
Prime Power: 125/100 (KVA/KW)
Consumption 100%: 27L/H
Open Type Dimension (L×W×H) : 2300 X 820 X 1450 mm
Weight: 1250KG
Open Type Dimension (L×W×H) : 2900 X 1080 X1500mm
Weight: 1920KG
Quantity
Specification
Generator Set
Max. Power: 138kVA / 110kW
Rate Power 125kVA / 100kW
Rate Voltage 230/400V
Dimension For Open-type Genset: 2180 X 820 X 1200mm
Weight For Open-type Genset: 1250kg
Dimension For Soundproof Genset 2900 X 1080 X 1500mm
Weight For Soundproof Generator 1920kg
Rate Power 125kVA / 100kW
Rate Voltage 230/400V
Dimension For Open-type Genset: 2180 X 820 X 1200mm
Weight For Open-type Genset: 1250kg
Dimension For Soundproof Genset 2900 X 1080 X 1500mm
Weight For Soundproof Generator 1920kg
Engine
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 6BTA5.9G2
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged & After-cooled
Governor: Electric
Engine Max. Output Power: 116.6kW
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 6BTA5.9G2
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged & After-cooled
Governor: Electric
Engine Max. Output Power: 116.6kW
Alternator
Alternator Model: ASF274D
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Hosem Cummins Generator 125kVA is one of the most popular productS in oversea market, three phase generator 125kva are suitable for home use or factory use.
Standard Configurations
• Virtual load cabinet
• Stainless galvanized zinc plates with strong corrosion resistance
• Water jacket preheater, oil heater and double air cleaner, etc.
• Virtual load cabinet
• Stainless galvanized zinc plates with strong corrosion resistance
• Water jacket preheater, oil heater and double air cleaner, etc.
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge
•Alternator excitation system: self-excited (AREP and PMG are optional)
•Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch
• Vibration isolators between the engine/alternator and base frame
• Integrated wiring design
• Base fuel tank for at least 8 hours running
• Equipped with an industrial muffler
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type)
• Top lifting and steel base frame with forklift holes
• Drainage for fuel tank
• Complete protection functions and safety labels
Optional Configurations:
• ATS (automatic transfer switch) receptacle
• Remote control system
• Virtual load cabinet
• Stainless galvanized zinc plates with strong corrosion resistance
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance
• Water jacket preheater, oil heater and double air cleaner, etc.
The Cummins Generator 125kVA is designed to provide a stable power supply, even in the most demanding environments. With a complete control panel that includes parameter displays, safety alarms, and protections such as low-level fuel and water alarms, high fuel temperature, low oil pressure, and high water temperature protection alarms, and overload protection, this generator ensures complete safety and peace of mind.
The compact design of the Cummins Generator 125kVA makes it easy to install and maintain, making it an ideal solution for various applications, including industrial, commercial, and residential. Whether you need a reliable backup power source or a primary power solution, this generator delivers unmatched performance and reliability.
The 100kW diesel engine powering the Cummins Generator 125kVA is built with advanced technology, ensuring fuel efficiency and low emissions while delivering a power output of up to 125kVA. The high-quality alternator ensures consistent and reliable power supply, making this generator an ideal solution for critical power applications.
Backed by Cummins' comprehensive warranty and after-sales support, the Cummins Generator 125kVA is a reliable and efficient power solution. Choose this generator and experience the benefits of owning a high-quality power solution from one of the world's leading manufacturers.
Details
Varta Brand Batteries High-efficiency Muffler Stainless Steel Door Lock Stainless Hinge
High-density Flame Retardant Lifting Ring and Step Ladder Forklift Holes Emergency Bottom
Sound-absorbing Cotton
