Cummins Power Generator 150kVA, 165kVA Power Generations
A-C165H / PRP: 150kVA , ESP: 165kVA
Main Specification:
Standby Power: 165kVA/132kW
Prime Power: 150kVA/120kW
Fuel Consumption 100%: 34.26L/H
Open Type Dimension (L×W×H): 2300 X 820 X 1450 mm
Weight: 1400KG
Silent Type Dimension (L×W×H): 3200 X 1080 X 1500 mm
Weight: 1920KG
Standby Power: 165kVA/132kW
Prime Power: 150kVA/120kW
Fuel Consumption 100%: 34.26L/H
Open Type Dimension (L×W×H): 2300 X 820 X 1450 mm
Weight: 1400KG
Silent Type Dimension (L×W×H): 3200 X 1080 X 1500 mm
Weight: 1920KG
Quantity
Specification
Generator Set
Max. Power: 165kVA / 132kW
Rate Power: 150kVA / 120kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 2300 X 820 X 1450mm
Weight For Open-type Genset: 1400kg
Dimension For Soundproof Genset: 3200 X 1080 X 1500mm
Weight For Soundproof Generator: 1920kg
Rate Power: 150kVA / 120kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 2300 X 820 X 1450mm
Weight For Open-type Genset: 1400kg
Dimension For Soundproof Genset: 3200 X 1080 X 1500mm
Weight For Soundproof Generator: 1920kg
Engine
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 6BTAA5.9-G2
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged and Air to Air Aftercooed
Governor: Electric
Engine Max. Output Power: 143kW
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 6BTAA5.9-G2
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged and Air to Air Aftercooed
Governor: Electric
Engine Max. Output Power: 143kW
Alternator
Alternator Model: ASF274ES
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23

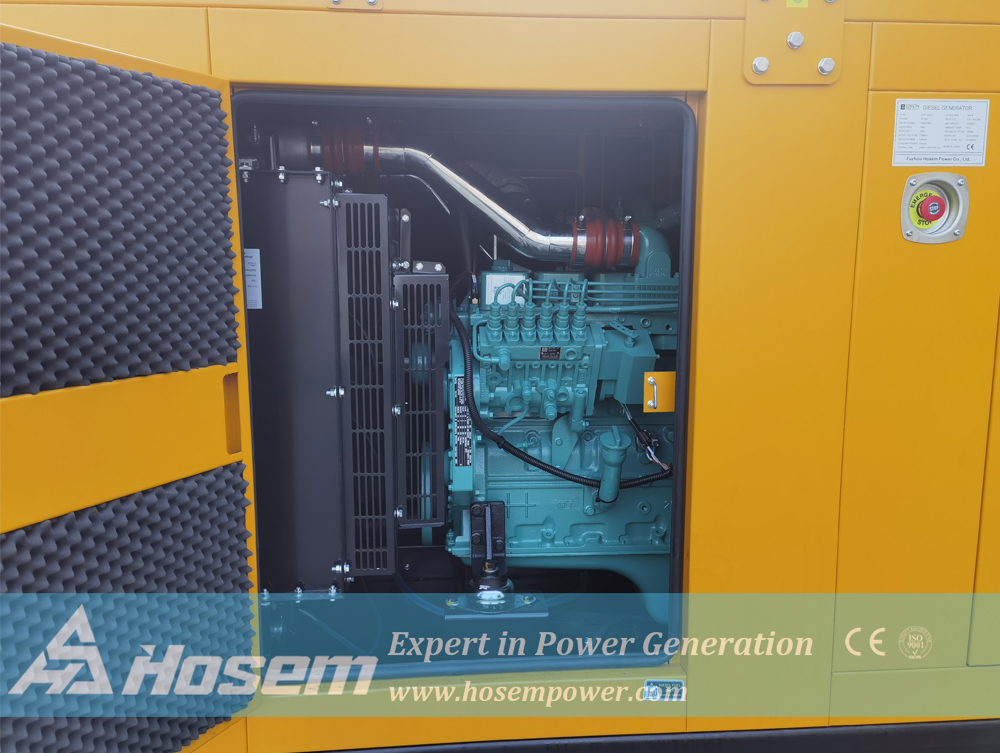

Our Cummins 165kVA Soundproof diesel generator is equipped with a copper radiator mounted on the skid for 50ºC ambient temperature and double-deck cooling, with a fan guard and front guard. Enough engine cooling system can guarantee a long time working.
Standard Configurations
Complete cummins dg set with:
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
Details
Varta Brand Batteries High-efficiency Muffler Stainless Steel Door Lock Stainless Hinge
High-density Flame Retardant Lifting Ring and Step Ladder Forklift Holes Emergency Bottom
Sound-absorbing Cotton
