Cummins Power Generator 182kVA, 200kVA Generator Sale
A-C200H / PRP: 182kVA , ESP: 200kVA
Main Specification:
Standby Power: 200kVA/160kW
Prime Power: 182kVA/145kW
Fuel Consumption 100%: 39.29L/H
Open Type Dimension (L×W×H): 2450 X 860 X 1450 mm
Weight: 1500KG
Silent Type Dimension (L×W×H): 3200 X 1080 X 1500 mm
Weight: 2200KG
Standby Power: 200kVA/160kW
Prime Power: 182kVA/145kW
Fuel Consumption 100%: 39.29L/H
Open Type Dimension (L×W×H): 2450 X 860 X 1450 mm
Weight: 1500KG
Silent Type Dimension (L×W×H): 3200 X 1080 X 1500 mm
Weight: 2200KG
Quantity
Specification
Generator Set
Max. Power: 200kVA / 160kW
Rate Power: 182kVA / 145kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 2450 X 860 X 1450mm
Weight For Open-type Genset: 1500kg
Dimension For Soundproof Genset: 3200 X 1080 X 1500mm
Weight For Soundproof Generator: 2200kg
Rate Power: 182kVA / 145kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 2450 X 860 X 1450mm
Weight For Open-type Genset: 1500kg
Dimension For Soundproof Genset: 3200 X 1080 X 1500mm
Weight For Soundproof Generator: 2200kg
Engine
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 6CTA8.3-G2
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 187kW
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 6CTA8.3-G2
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 187kW
Alternator
Alternator Model: ASF274F
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23

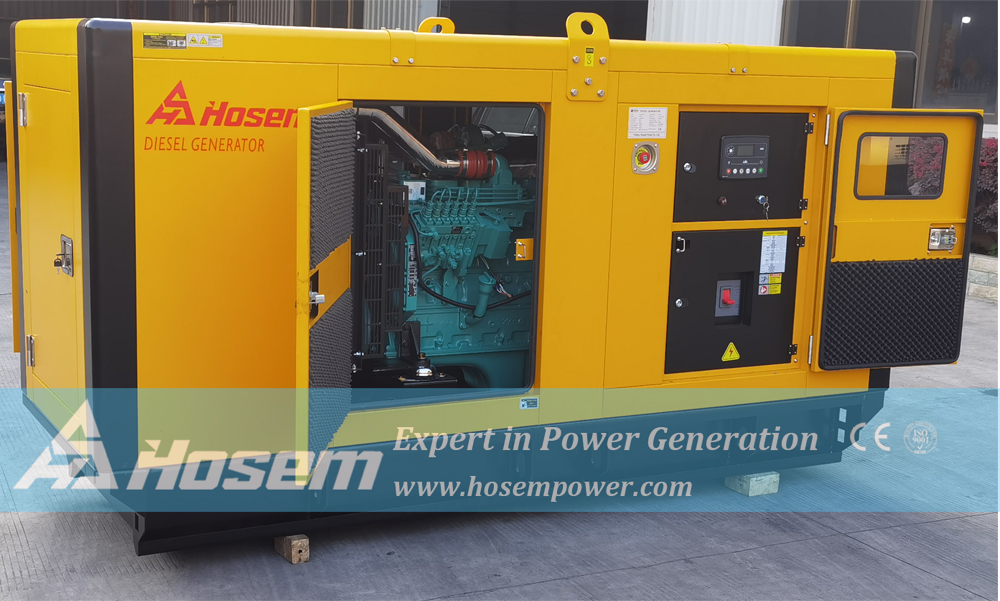

The 200kva silent generator is a reliable and powerful generator designed to provide reliable and efficient power in any environment. Cummins commercial standby generator features a 6-cylinder, turbocharged engine, state-of-the-art safety features, and a low-noise design.
Standard Configurations
Complete cummins dg set with:
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
Details

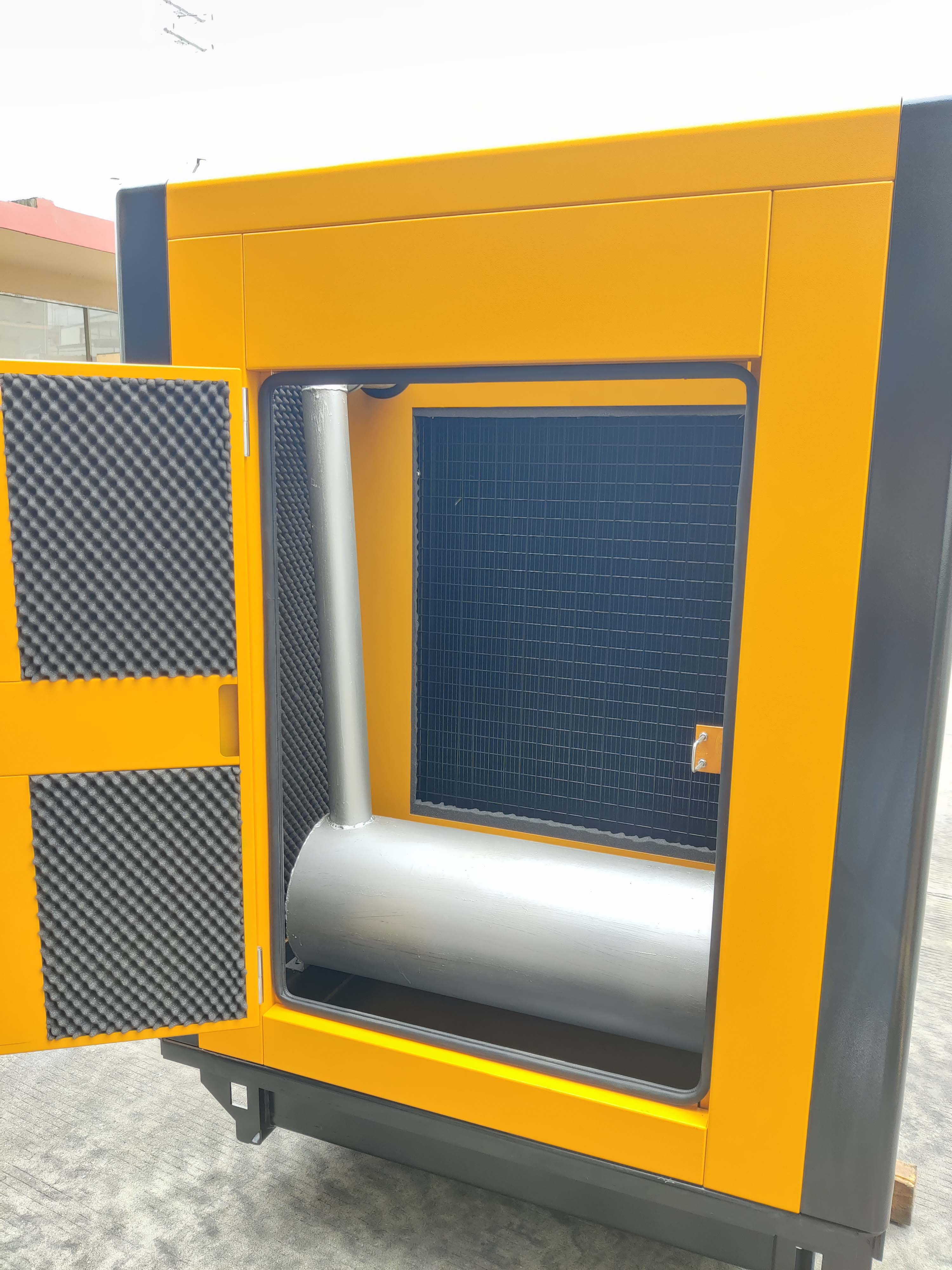

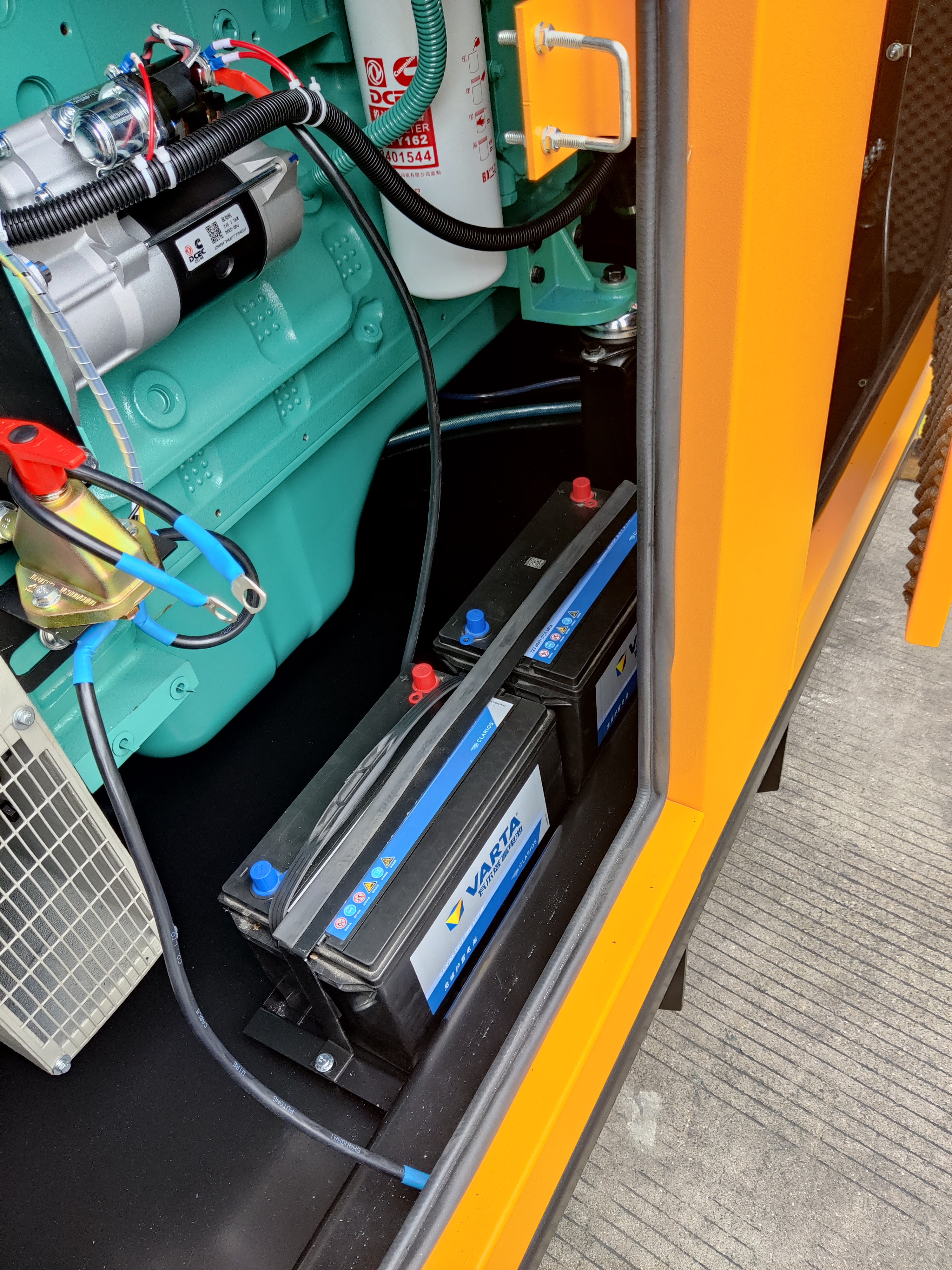

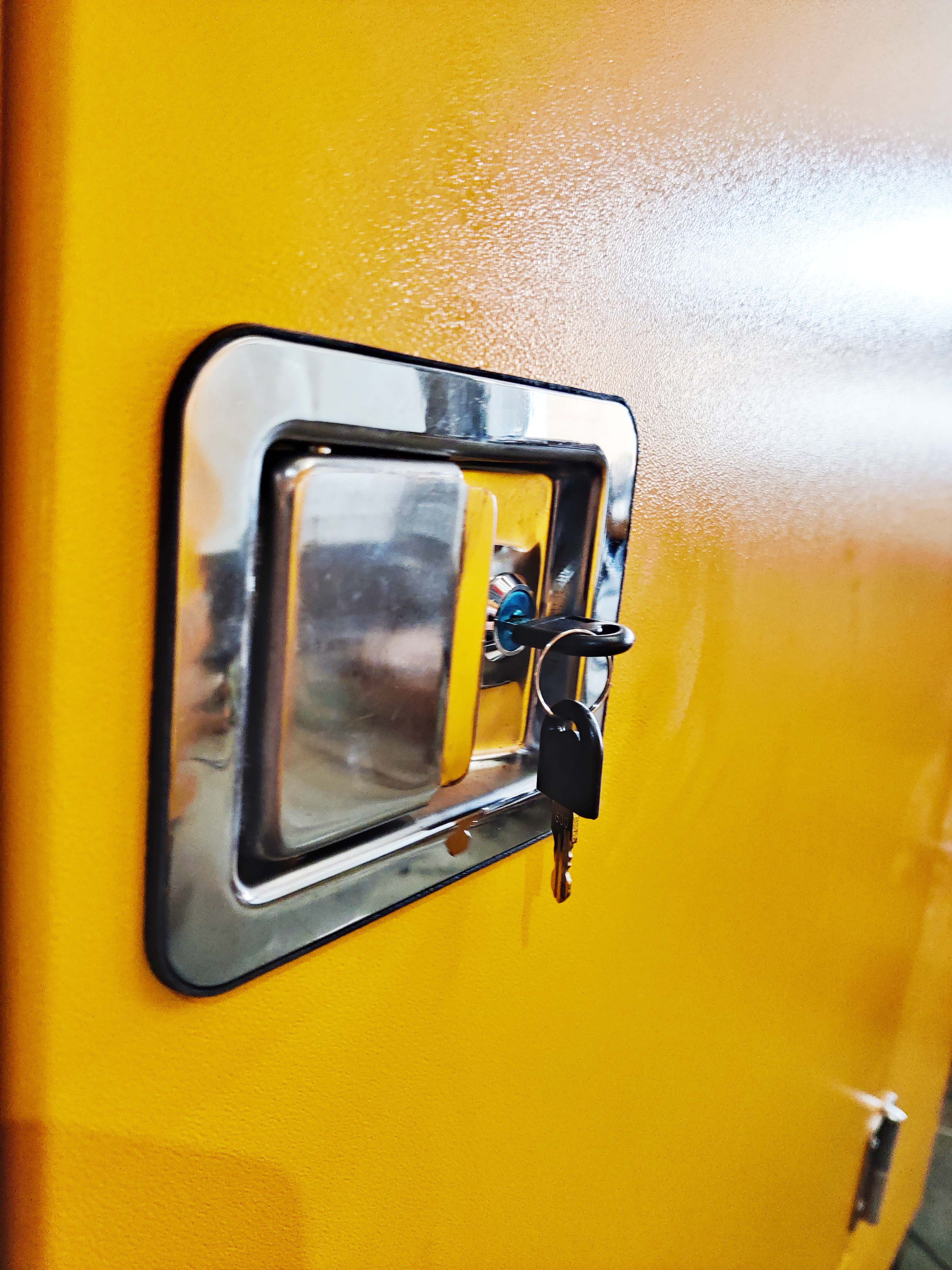

Varta Brand Batteries High-efficiency Muffler Stainless Steel Door Lock Stainless Hinge

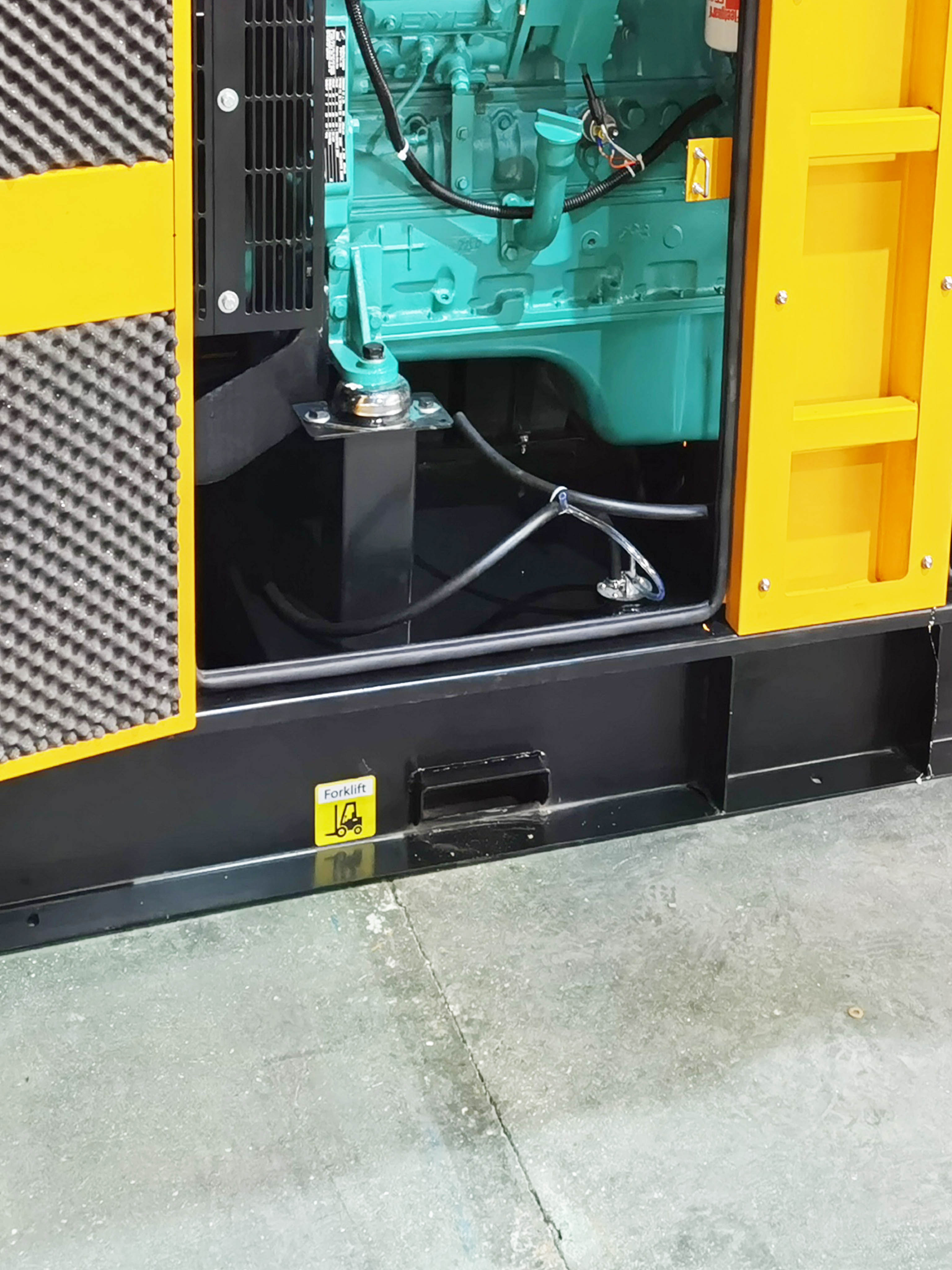

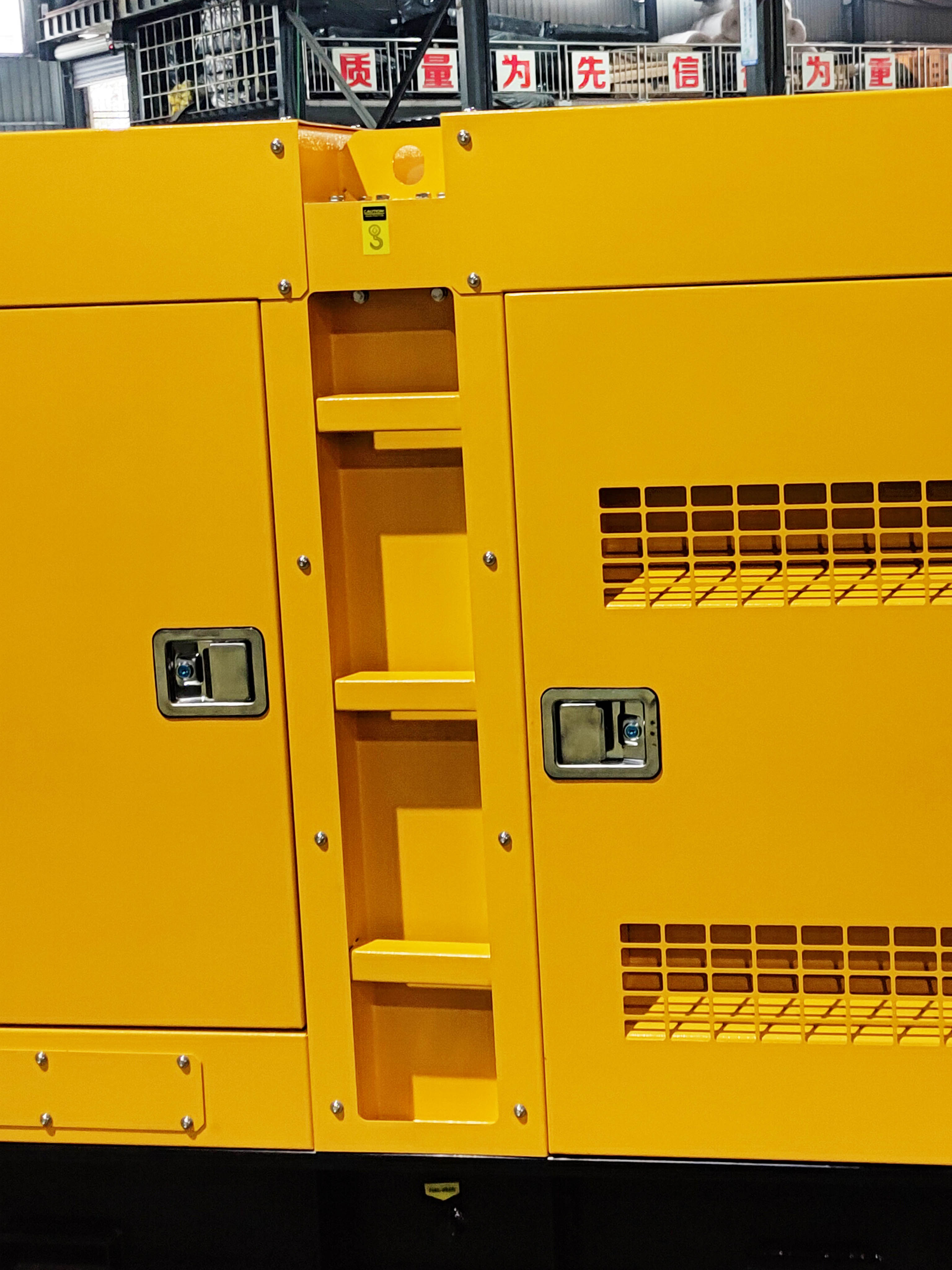

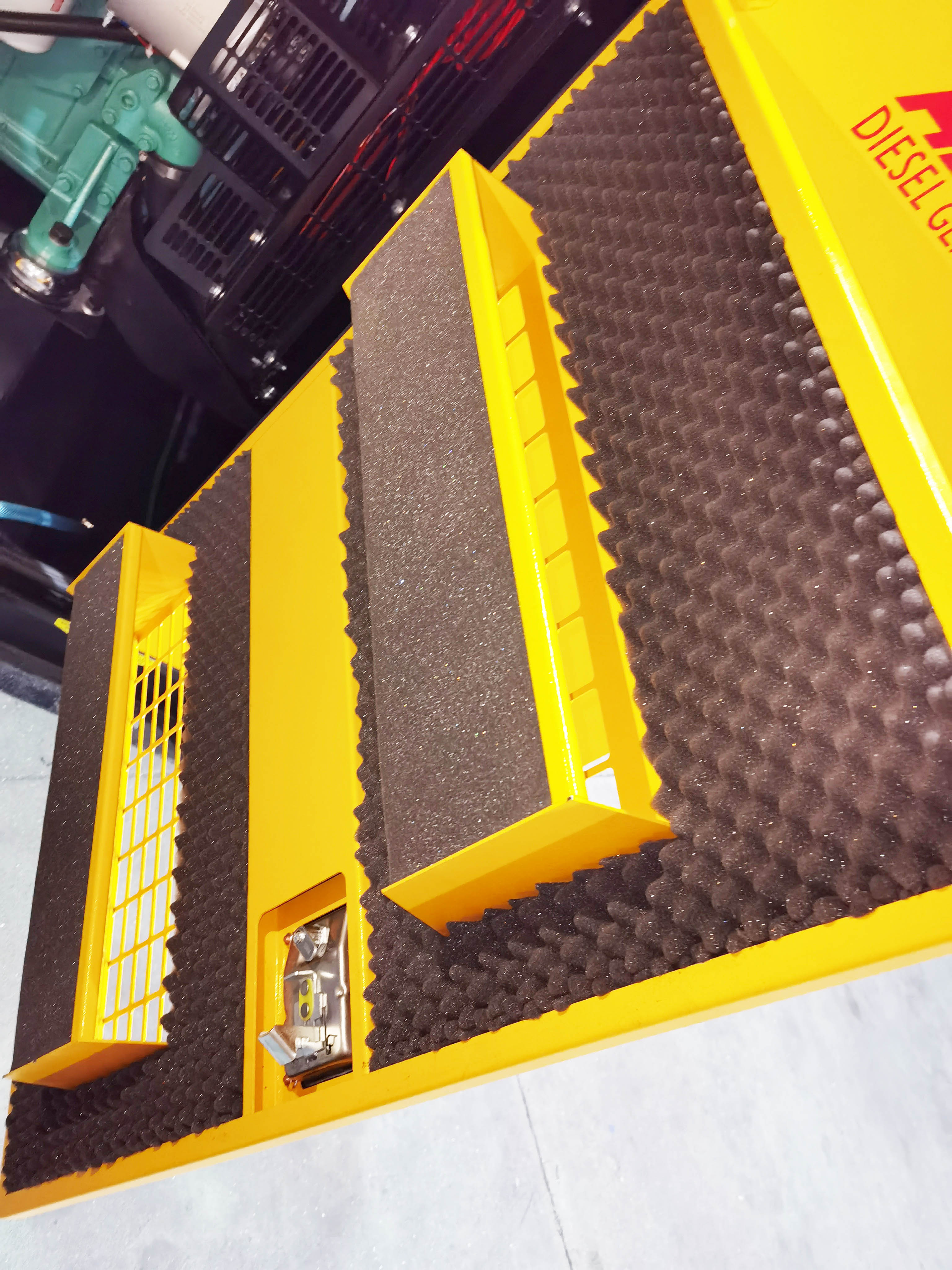

High-density Flame Retardant Lifting Ring and Step Ladder Forklift Holes Emergency Bottom
Sound-absorbing Cotton
