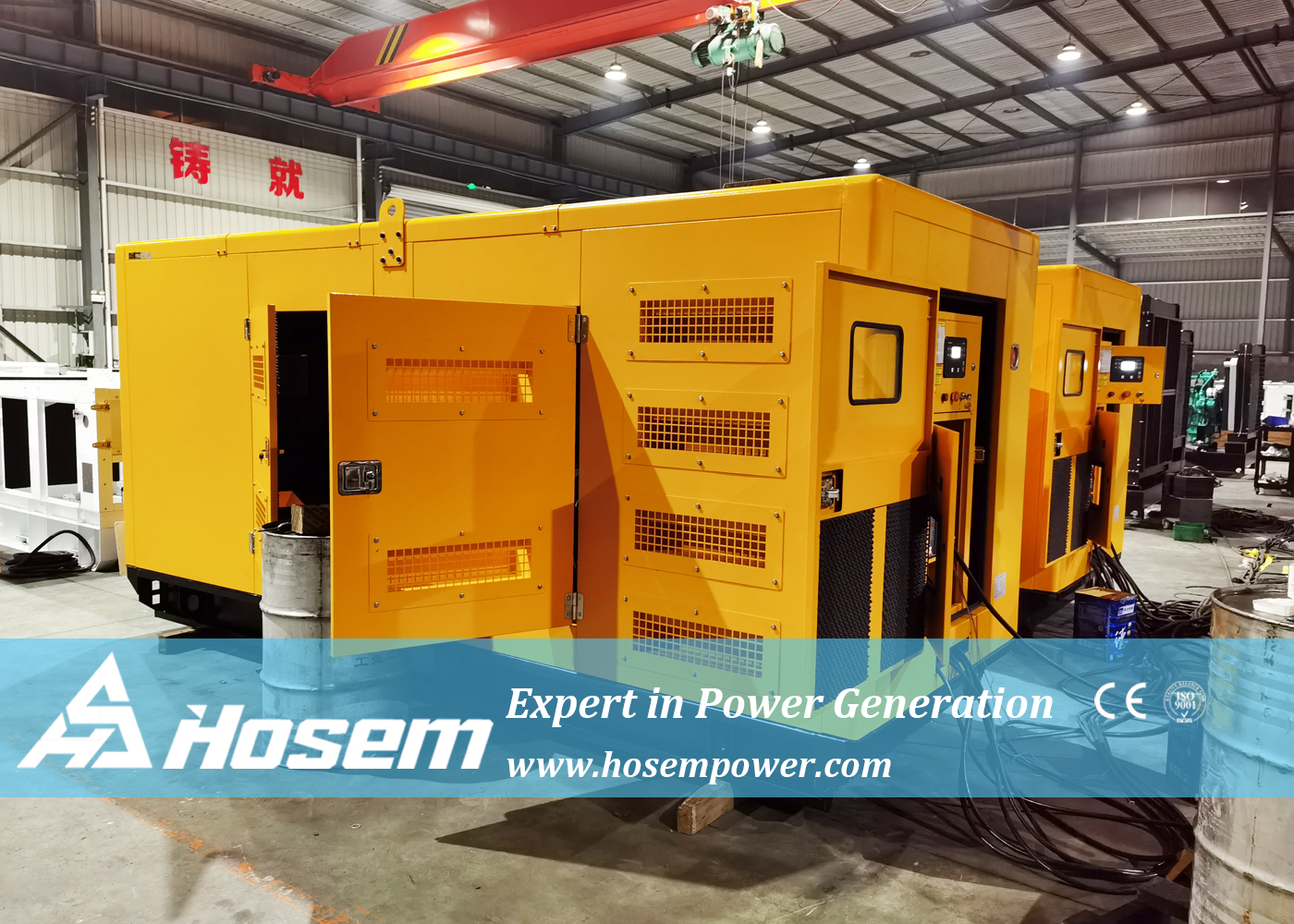

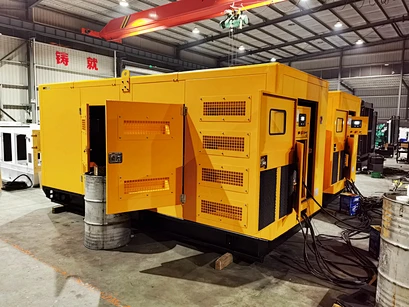

Cummins Power Generator 500kVA, 400kW Genset Price
A-C550 / PRP: 500kVA , ESP: 550kVA
Key Specification:
Standby Power: 550/440KVA/KW
Prime Power: 500/400KVA/KW
Consumption 100%: 91L/H
Open Type Dimension (L×W×H) : 3490*1680*1920mm
Weight: 4800KG
Silent Type Dimension (L×W×H) : 4350*1450*2180mm
Weight: 5500KG
Standby Power: 550/440KVA/KW
Prime Power: 500/400KVA/KW
Consumption 100%: 91L/H
Open Type Dimension (L×W×H) : 3490*1680*1920mm
Weight: 4800KG
Silent Type Dimension (L×W×H) : 4350*1450*2180mm
Weight: 5500KG
Quantity
Specification
Generator Set
Max. Power: 550kVA / 440kW
Rate Power 500kVA / 400kW
Frequency 50Hz
Rate Voltage 220/380V
Dimension For Open-type Genset: 3475 X 1250 X 1920
Weight For Open-type Genset: 4800kg
Dimension For Soundproof Genset 4250 X 1550 X 2180mm
Weight For Soundproof Generator 5050kg
Rate Power 500kVA / 400kW
Frequency 50Hz
Rate Voltage 220/380V
Dimension For Open-type Genset: 3475 X 1250 X 1920
Weight For Open-type Genset: 4800kg
Dimension For Soundproof Genset 4250 X 1550 X 2180mm
Weight For Soundproof Generator 5050kg
Engine
Engine Manufacturer: Chongqing Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: KTA19-G3A
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 504kW
Engine Manufacturer: Chongqing Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: KTA19-G3A
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 504kW
Alternator
Alternator Model: ASF354C
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Standard Configurations
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
Details
Varta Brand Batteries High-efficiency Muffler Stainless Steel Door Lock Stainless Hinge
High-density Flame Retardant Lifting Ring and Step Ladder Forklift Holes Emergency Bottom
Sound-absorbing Cotton
