Cummins genset, diesel generator Cummins
Cummins genset, diesel generator Cummins
cummins house generator, generator 60kVA
Cummins generator 60kVA， generator 50kw
genset 50kw， cummins generator 60kva

Cummins Power Generator 60kVA, Genset Diesel 48kW

A-C66 / PRP: 50kVA , ESP: 55kVA
Main Specification:
Standby Power: 66kVA/53kW
Prime Power: 60kVA/48kW
Fuel Consumption 100%: 15.0L/H
Open Type Dimension (L×W×H): 1820 X 830 X 1050 mm
Weight: 1020KG
Silent Type Dimension (L×W×H): 2450×900×1250 mm
Weight: 1340KG
Quantity
Contact Now
add to cart

Specification


Generator Set
Max. Power:  66kVA / 53kW
Rate Power   60kVA / 48kW
Frequency    50Hz
Rate Voltage  230/400V
Dimension For Open-type Genset: 1820 X 830 X 1050mm
Weight For Open-type Genset: 1020kg
Dimension For Soundproof Genset  2450 X 900 X 1250mm
Weight For Soundproof Generator 1340kg

Engine
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 4BTA3.9-G2
No. of Cylinder: 4 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 64kW

Alternator
Alternator Model: ASF224E
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23

Hosem Power genset diesel Cummins 50kW, powered Cummins engine, robust and reliable, it a good choice for home use or industrial use diesel backup generator, don't hesitated to inquiry us about this 60kVA generator price

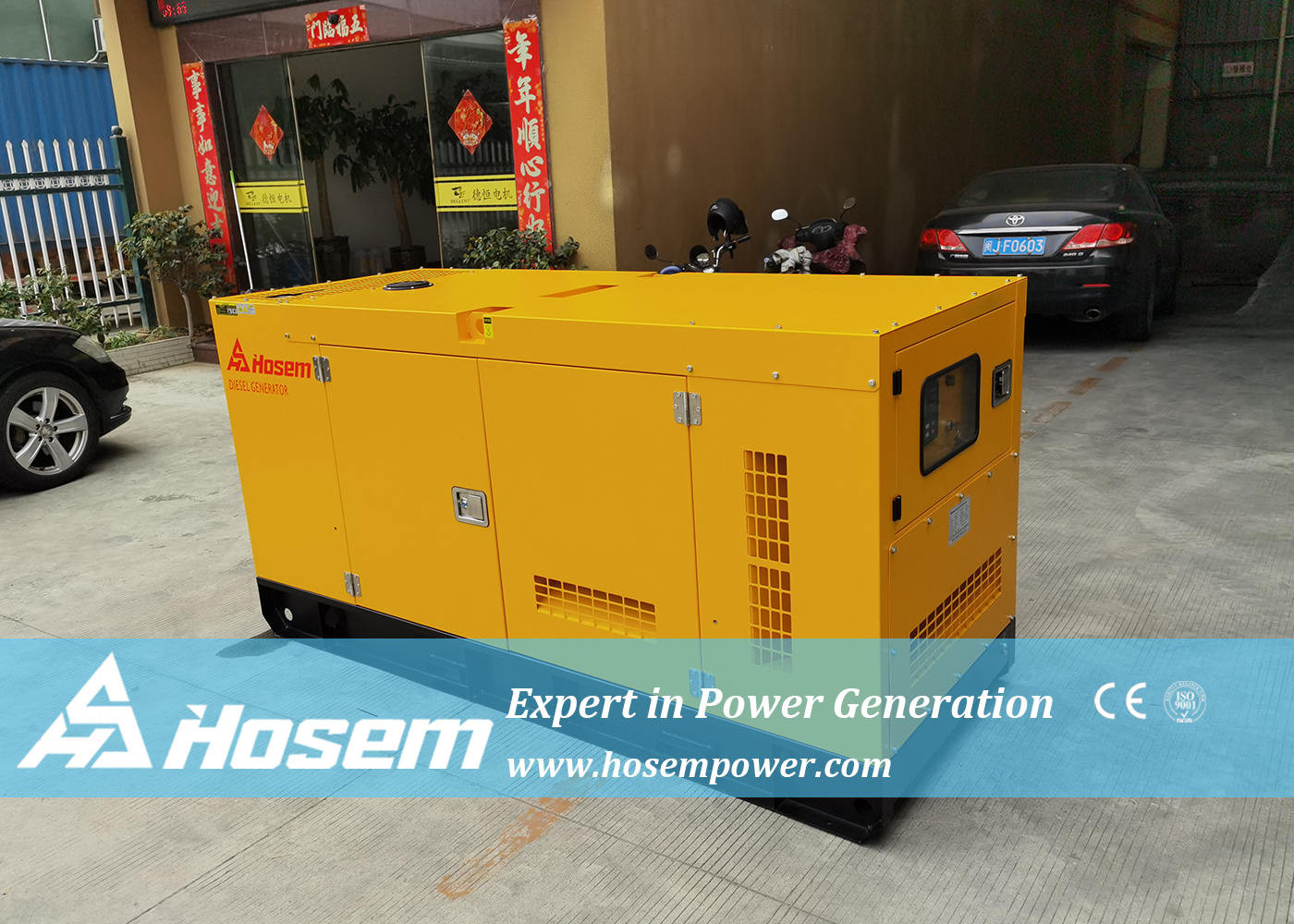

generator Cummins 50kW


Standard Configurations

• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.


Optional Configurations:

• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.

The Cummins backup generator, also available in a 60kVA generator model, is designed to provide uninterrupted power supply during power outages or in remote locations.

Equipped with the renowned Cummins engine, optimized for use in generator sets, the Cummins backup generator is capable of providing a range of power outputs to meet the needs of homes and small businesses of all sizes. It is designed to power your entire property, ensuring that your daily operations can continue, no matter what.

The Cummins backup generator features a complete control panel that displays parameters in English and includes safety alarms and protections, such as low-level fuel and water alarms, high fuel temperature, low oil pressure, and high water temperature protection alarms, and overload protection. It is also equipped with an electric starter-alternator and a charge storage battery DC24V (two 12 V), ensuring easy and reliable starting.

With its compact size and quiet operation, the Cummins backup generator is the perfect solution for homes and small businesses that need a reliable and efficient power source. It is also designed for easy installation and maintenance, ensuring that you can rely on it when you need it most.

The Cummins backup generator is backed by Cummins' comprehensive warranty and after-sales support, ensuring that you can rely on your generator set for years to come. Whether you need a backup power source for your home or small business, or a reliable power solution for remote locations, the Cummins backup generator is the perfect choice. Choose the 60kVA generator model for even more power and enjoy uninterrupted and efficient power supply, no matter what.



Details



    Varta Brand Batteries                     High-efficiency Muffler                Stainless Steel Door Lock                   Stainless Hinge


High-density Flame Retardant     Lifting Ring and Step Ladder                 Forklift Holes                              Emergency Bottom
Sound-absorbing Cotton
