Cummins Power Generator 68kVA, 75kVA Industrial Generator Set
A-C75H / PRP: 68kVA , ESP: 75kVA
Main Specification:
Standby Power: 75kVA/60kW
Prime Power: 68kVA/54kW
Fuel Consumption 100%: 16.86L/H
Open Type Dimension (L×W×H): 1820 X 750 X 1050 mm
Weight: 1020KG
Silent Type Dimension (L×W×H): 2500 X 1050 X 1490 mm
Weight: 1270KG
Standby Power: 75kVA/60kW
Prime Power: 68kVA/54kW
Fuel Consumption 100%: 16.86L/H
Open Type Dimension (L×W×H): 1820 X 750 X 1050 mm
Weight: 1020KG
Silent Type Dimension (L×W×H): 2500 X 1050 X 1490 mm
Weight: 1270KG
Quantity
Specification
Generator Set
Max. Power: 75kVA / 60kW
Rate Power: 68kVA / 54kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 1820 X 750 X 1050mm
Weight For Open-type Genset: 1020kg
Dimension For Soundproof Genset: 2500 X 1050 X 1490mm
Weight For Soundproof Generator: 1270kg
Rate Power: 68kVA / 54kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 1820 X 750 X 1050mm
Weight For Open-type Genset: 1020kg
Dimension For Soundproof Genset: 2500 X 1050 X 1490mm
Weight For Soundproof Generator: 1270kg
Engine
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 4BTA3.9-G2
No. of Cylinder: 4 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 66kW
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 4BTA3.9-G2
No. of Cylinder: 4 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 66kW
Alternator
Alternator Model: ASF224FS
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23

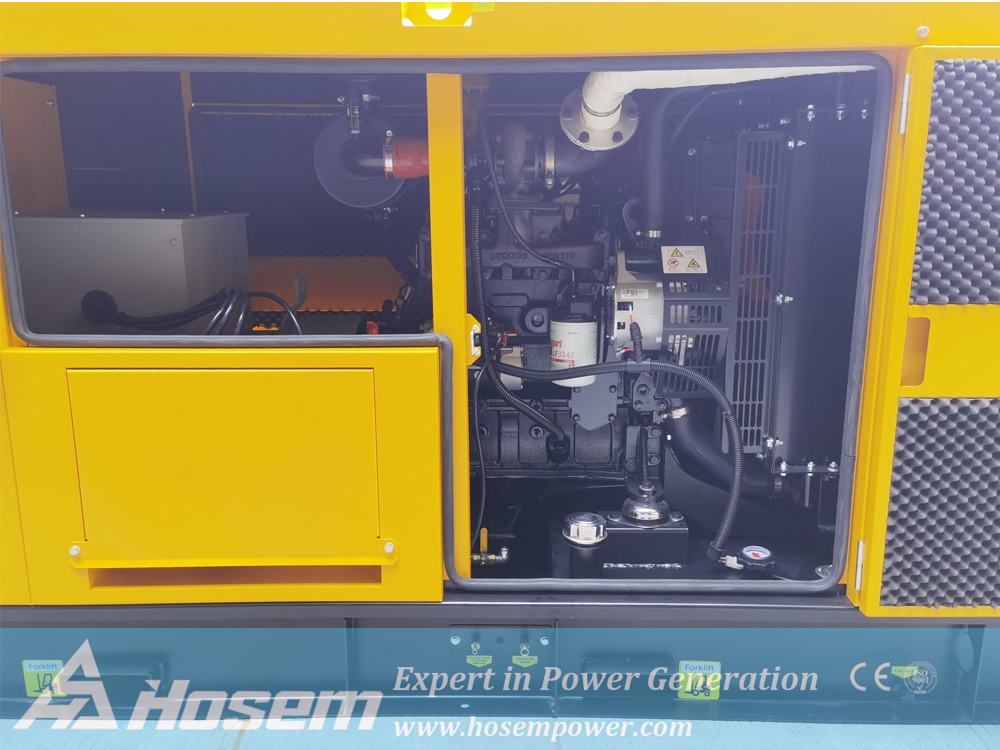

68kva diesel genset powered by Cummins is complete equipment for electrical power supply. Cummins soundless industrial generator set with high-quality alternators and an advanced complete automatic control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.
Standard Configurations
Complete cummins dg set with:
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
Details
Varta Brand Batteries High-efficiency Muffler Stainless Steel Door Lock Stainless Hinge
High-density Flame Retardant Lifting Ring and Step Ladder Forklift Holes Emergency Bottom
Sound-absorbing Cotton
