Cummins Power Generator 91kVA, 100kVA Silent Diesel Generator
A-C100H / PRP: 91kVA , ESP: 100kVA
Main Specification:
Standby Power: 100kVA/80kW
Prime Power: 91kVA/73kW
Fuel Consumption 100%: 22.57L/H
Open Type Dimension (L×W×H): 1820 X 750 X 1050 mm
Weight: 1020KG
Silent Type Dimension (L×W×H): 2500 X 1050 X 1490 mm
Weight: 1270KG
Standby Power: 100kVA/80kW
Prime Power: 91kVA/73kW
Fuel Consumption 100%: 22.57L/H
Open Type Dimension (L×W×H): 1820 X 750 X 1050 mm
Weight: 1020KG
Silent Type Dimension (L×W×H): 2500 X 1050 X 1490 mm
Weight: 1270KG
Quantity
Specification
Generator Set
Max. Power: 100kVA / 80kW
Rate Power: 91kVA / 73kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 1820 X 750 X 1050mm
Weight For Open-type Genset: 1020kg
Dimension For Soundproof Genset: 2500 X 1050 X 1490mm
Weight For Soundproof Generator: 1270kg
Rate Power: 91kVA / 73kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 1820 X 750 X 1050mm
Weight For Open-type Genset: 1020kg
Dimension For Soundproof Genset: 2500 X 1050 X 1490mm
Weight For Soundproof Generator: 1270kg

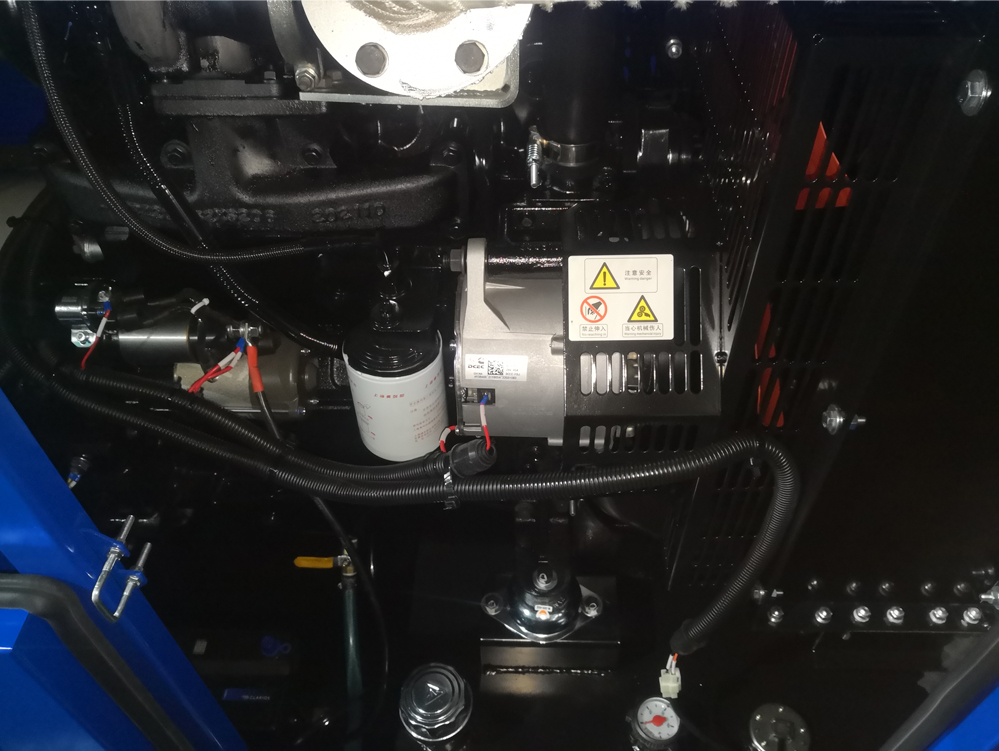

Engine
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 4BTA3.9-G11
No. of Cylinder: 4 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 88kW
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Engine Brand: Cummins
Engine Model: 4BTA3.9-G11
No. of Cylinder: 4 Cylinder in line
Aspiration: Turbocharged & Aftercooled
Governor: Electric
Engine Max. Output Power: 88kW

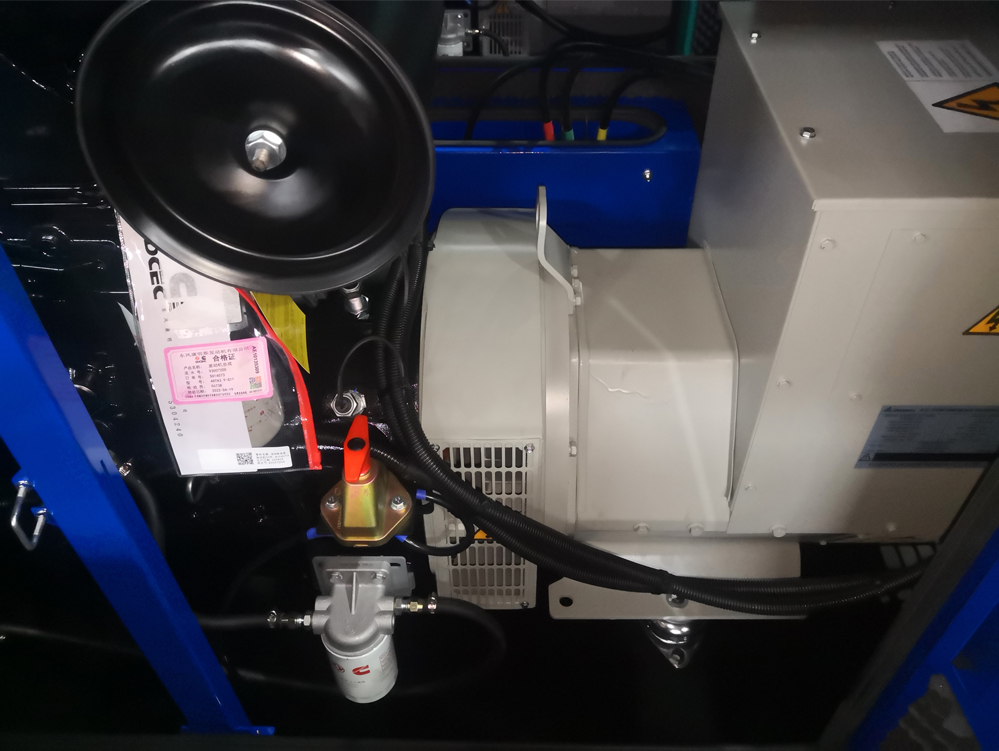

Alternator
Alternator Model: ASF224F
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Cummins 91kVA diesel genset has Anti-vibration pads fixed between the engine, alternator, and base frame to ensure the complete Genset running stable.
Standard Configurations
Complete cummins dg set with:
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
Details
Varta Brand Batteries High-efficiency Muffler Stainless Steel Door Lock Stainless Hinge
High-density Flame Retardant Lifting Ring and Step Ladder Forklift Holes Emergency Bottom
Sound-absorbing Cotton
