Doosan Diesel Generator 200kVA, 220kVA Emergency Standby Power
A-D220H / PRP: 200kVA , ESP: 220kVA
Main Specification:
Standby Power: 220kVA/ 176kW
Prime Power: 200kVA/ 160kW
Consumption 100%: 118.1L/H
Open Type Dimension (L×W×H): 2590 X 950 X 1600mm
Weight: 2000KG

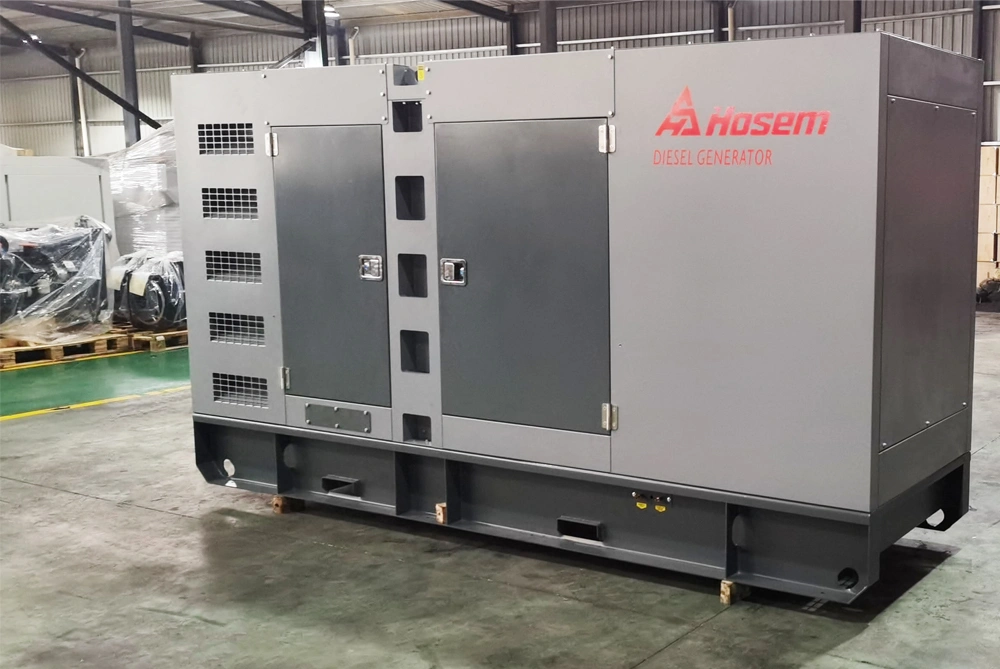

Silent Type Dimension (L×W×H): 3100 X 1200 X 1700mm
Weight: 2690KG
Standby Power: 220kVA/ 176kW
Prime Power: 200kVA/ 160kW
Consumption 100%: 118.1L/H
Open Type Dimension (L×W×H): 2590 X 950 X 1600mm
Weight: 2000KG
Silent Type Dimension (L×W×H): 3100 X 1200 X 1700mm
Weight: 2690KG
Quantity
Specification
Generator Set
Max. Power: 220kVA / 176kW
Rate Power: 200kVA / 160kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 2590 X 950 X 1600mm
Weight For Open-type Genset: 2000kg
Dimension For Soundproof Genset: 3100 X 1200 X 1700mm
Weight For Soundproof Generator: 2690kg
Rate Power: 200kVA / 160kW
Frequency: 60Hz
Rate Voltage: 230/133V
Dimension For Open-type Genset: 2590 X 950 X 1600mm
Weight For Open-type Genset: 2000kg
Dimension For Soundproof Genset: 3100 X 1200 X 1700mm
Weight For Soundproof Generator: 2690kg
Engine
Engine Manufacturer: Hyundai Doosan Infracore Engine
Engine Brand: Doosan
Engine Model: P086TI-1
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged
Governor: Electric
Engine Max. Output Power: 191kW
Engine Manufacturer: Hyundai Doosan Infracore Engine
Engine Brand: Doosan
Engine Model: P086TI-1
No. of Cylinder: 6 Cylinder in line
Aspiration: Turbocharged
Governor: Electric
Engine Max. Output Power: 191kW
Alternator
Alternator Model: ASF274G
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX440
Protection Grade: IP23
Doosan 200kva silent generator is used to power various types of machinery as a backup power solution, such as generators, pumps, compressors, and other industrial equipment. Doosan electric generation is designed to provide consistent, reliable power and is capable of running continuously for long periods of time.
Standard Configurations
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.

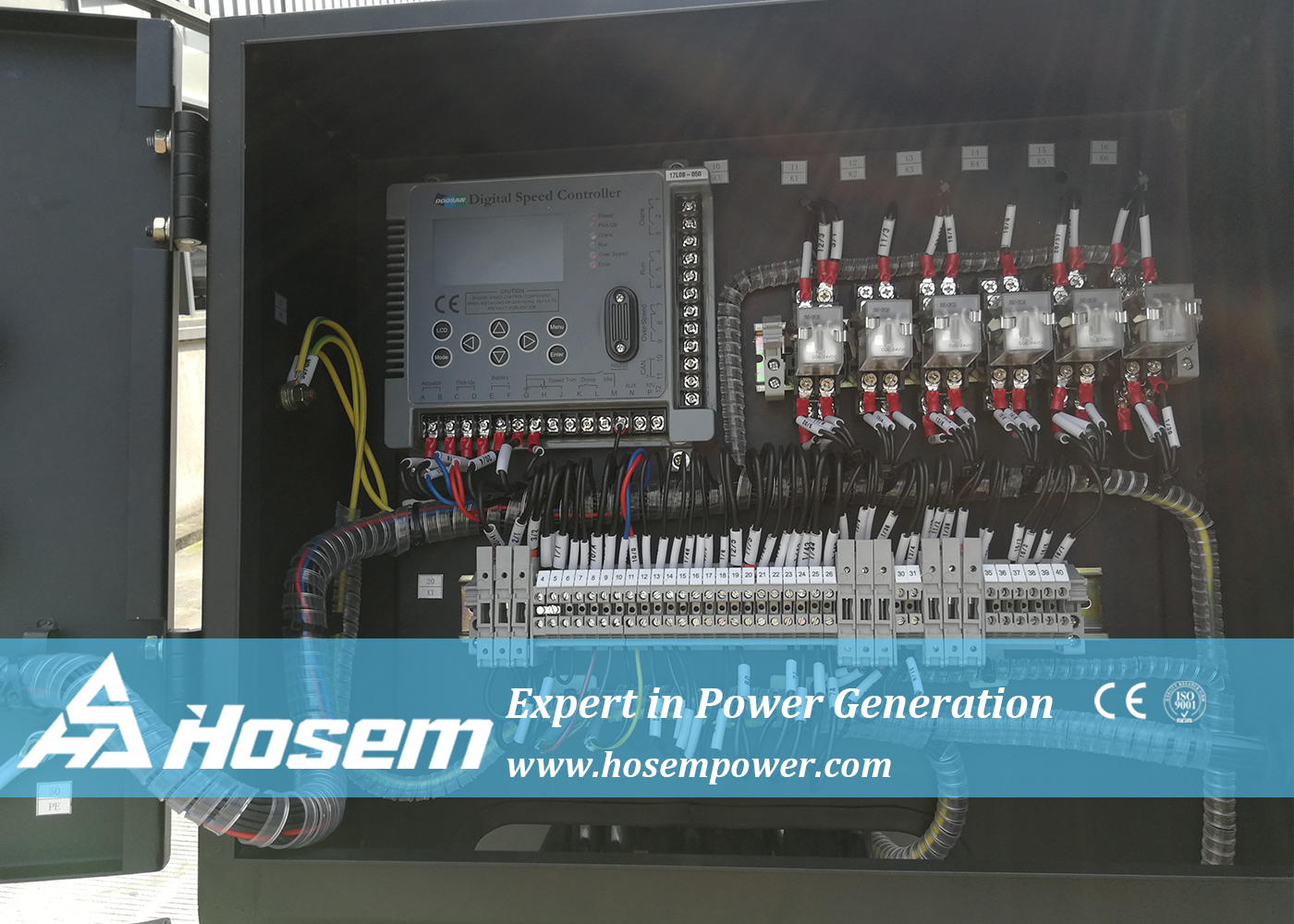

• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
