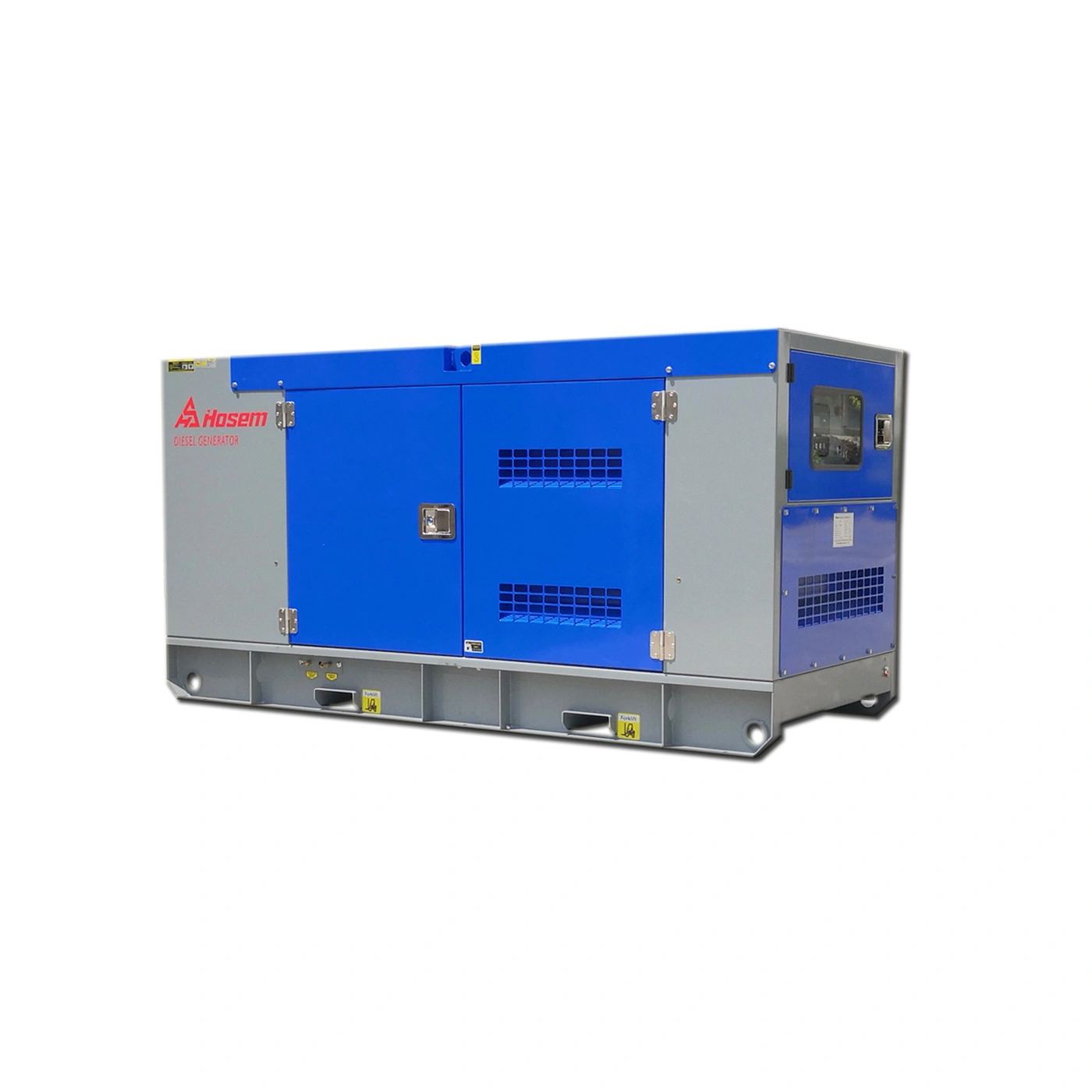

Isuzu Diesel Generator 30kVA, 24kW Isuzu Genset Price
A-I33 / PRP: 30kVA , ESP: 33kVA
Main Specification:
Standby Power: 33kVA/ 26kW
Prime Power: 30kVA/ 24kW
Consumption 100%: 7.5L/H
Open Type Dimension (L×W×H) : 1560 X 680 X 1350mm
Weight: 630KG
Silent Type Dimension (L×W×H) : 1950 X 900 X 1200mm
Weight: 960KG
Standby Power: 33kVA/ 26kW
Prime Power: 30kVA/ 24kW
Consumption 100%: 7.5L/H
Open Type Dimension (L×W×H) : 1560 X 680 X 1350mm
Weight: 630KG
Silent Type Dimension (L×W×H) : 1950 X 900 X 1200mm
Weight: 960KG
Quantity
Specification
Generator Set
Max. Power: 33kVA / 26kW
Rate Power 30kVA / 24kW
Frequency 50Hz
Rate Voltage 230/400V
Dimension For Open-type Genset: 1560 X 680 X 1350mm
Weight For Open-type Genset: 630kg
Dimension For Soundproof Genset 1950 X 900 X 1200mm
Weight For Soundproof Generator 960kg
Rate Power 30kVA / 24kW
Frequency 50Hz
Rate Voltage 230/400V
Dimension For Open-type Genset: 1560 X 680 X 1350mm
Weight For Open-type Genset: 630kg
Dimension For Soundproof Genset 1950 X 900 X 1200mm
Weight For Soundproof Generator 960kg
Engine
Engine Manufacturer: JIANGXI ISUZU ENGINE CO.,LTD
Engine Brand: Isuzu
Engine Model: JE493DB-04
No. of Cylinder: 4 Cylinder in line
Aspiration: Turbocharged
Governor: Machinical
Engine Max. Output Power: 34kW
Engine Manufacturer: JIANGXI ISUZU ENGINE CO.,LTD
Engine Brand: Isuzu
Engine Model: JE493DB-04
No. of Cylinder: 4 Cylinder in line
Aspiration: Turbocharged
Governor: Machinical
Engine Max. Output Power: 34kW
Alternator
Alternator Model: ASF184G
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
Hosem Power Isuzu genset is powered by original Japanese Isuzu, Isuzu Generator 30kVA with features of low noice, low fuel consumption, high efficiency and low vibration, Isuzu genset is widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.
Standard Configurations
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).

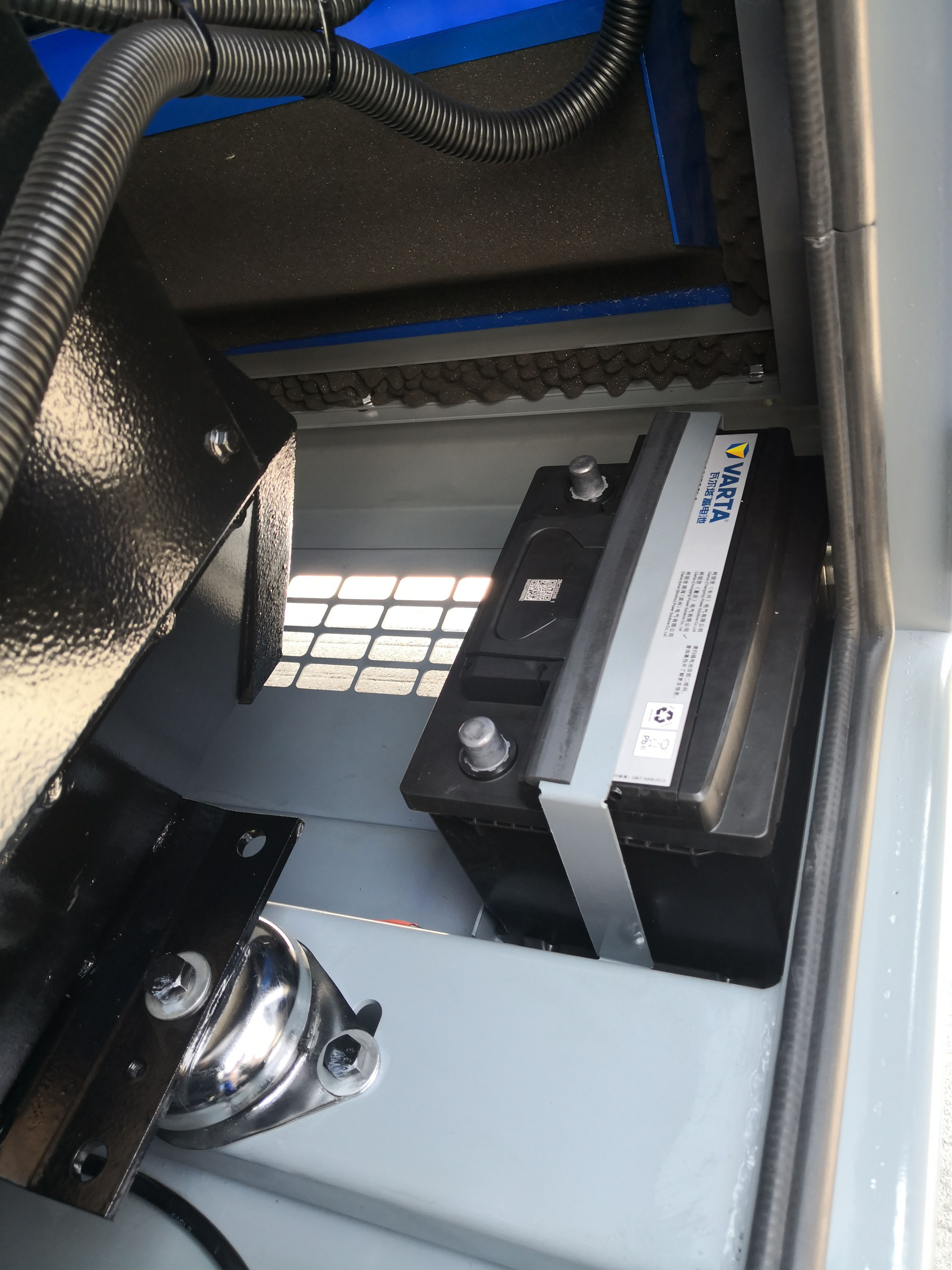

• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
