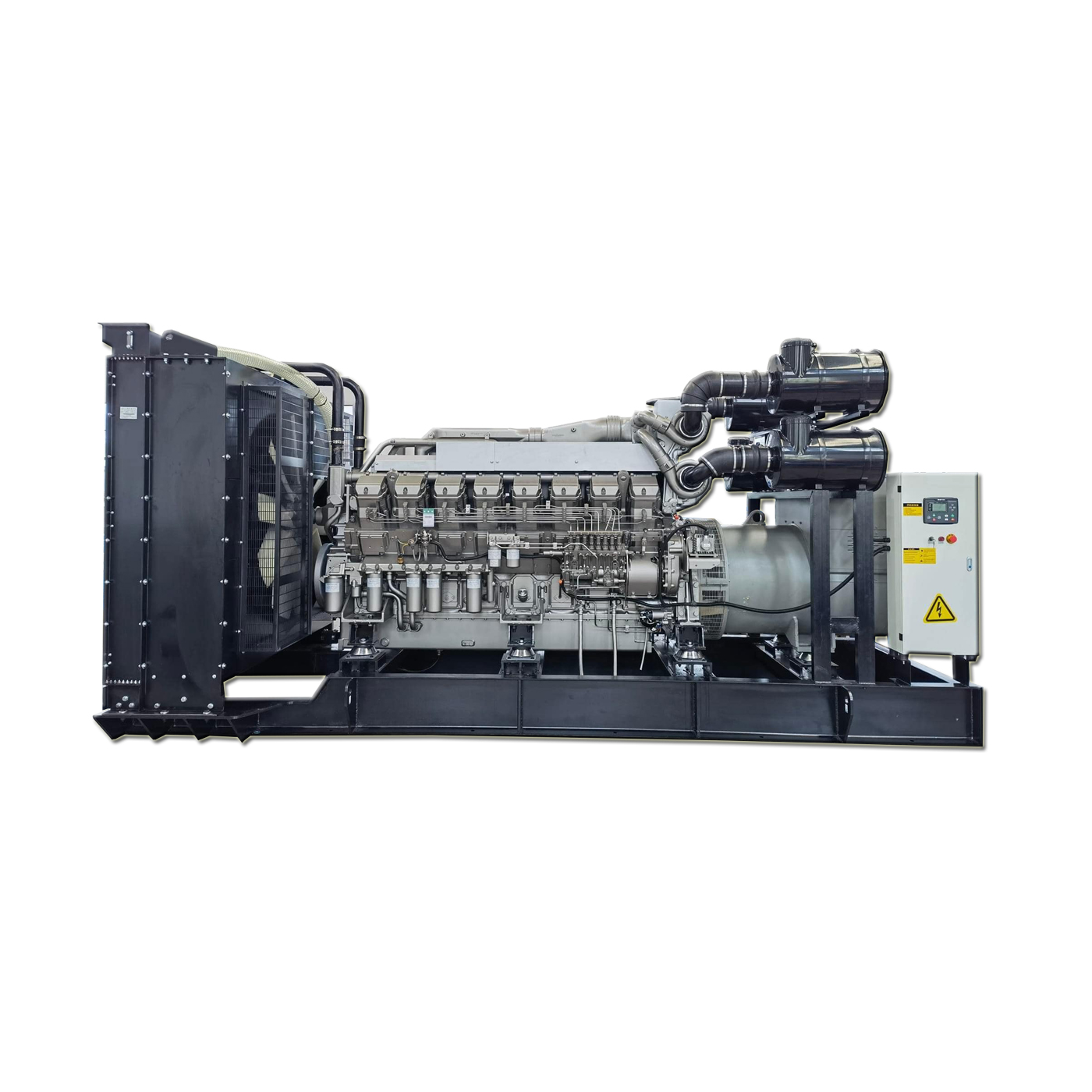

Mitsubishi Power Generator 1875kVA, 1500kW Mitsubishi Generators for Sale
A-M2063 / PRP: 1875kVA , ESP: 2063kVA
Main Specification:
Standby Power: 2063/1650 (KVA/KW)
Prime Power: 1875/1500 (KVA/KW)
Consumption 100%: 380 L/H
Open Type Dimension (L×W×H) : 5382 X 2486 X 2931mm
Weight: 12100KG
Silent Type Dimension (L×W×H) : 12192 X 2438 X 2896mm
Weight: 15580KG
Standby Power: 2063/1650 (KVA/KW)
Prime Power: 1875/1500 (KVA/KW)
Consumption 100%: 380 L/H
Open Type Dimension (L×W×H) : 5382 X 2486 X 2931mm
Weight: 12100KG
Silent Type Dimension (L×W×H) : 12192 X 2438 X 2896mm
Weight: 15580KG
Quantity
Standard Configurations
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
Mitsubishi generator 1500kw with strong power drive by Japanese Mitsubishi S16R-PTA2-C cylinder diesel engine, Mitsubishi Engine Generator with the features of low fuel consumption, high efficiency
Mitsubishi series diesel generator sets, with a power range of 500KW-1600KW, use the internationally renowned Japanese Mitsubishi Heavy Industries Corporation’s power station diesel engine as power, and select domestic and foreign well-known brand generators and controllers.
| Generator Set Specification | ||
| Model | A-M2063 | |
| Max. Power | kVA | 2063 |
| kW | 1650 | |
| Rate Power | kVA | 1875 |
| kW | 1500 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 2706.4 |
| Fuel Tank Capacity | L | 0.4 |
| Dimension For Open-type Genset | mm | 5382 X 2486 X 2931 |
| Weight For Open-type Genset | kg | 12100 |
| Dimension For Soundproof Genset | mm | 12192 X 2438 X 2896 |
| Weight For Soundproof Generator | kg | 15580 |
| Noise Level for Soundproof Generator at 7M | dBA | 85 |
| Battery | Four of Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | SME (Shanghai Mitsubishi Engine Co., Ltd.) | |
| Engine Brand | Mitsubishi | |
| Engine Model | S16R-PTA2-C | |
| No. of Cylinder | 16 Cylinder V Type | |
| Aspiration | Turbocharged & Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 1760 |
| Displacement | L | 65.4 |
| Compression Ratio | 6550 | |
| Starting Voltage | V | 24 |
| Bore | mm | 170 |
| Stroke | mm | 180 |
| Lubrication Oil Capacity | L | 230 |
| Intake Air Flow | M3/Min | 146 |
| Fuel Consumption at 100% Load | L/H | 380 |
