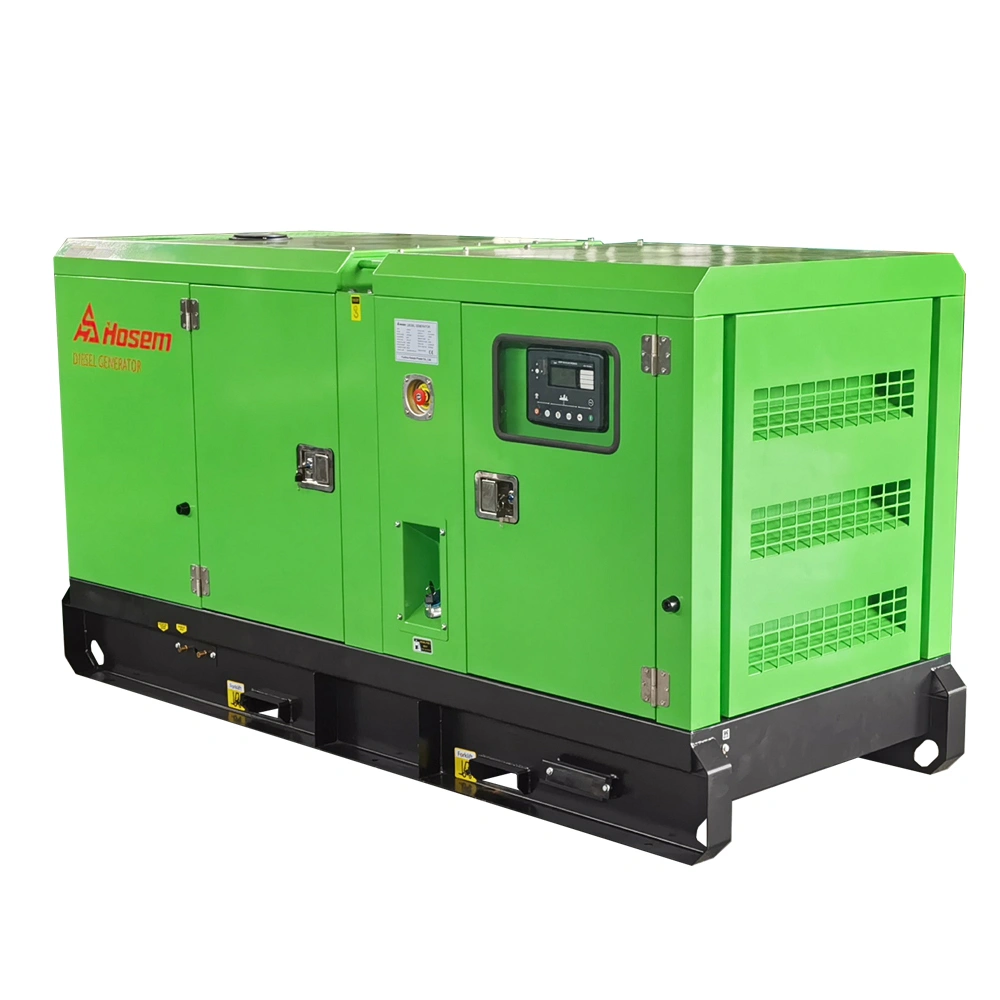

Perkins Power Generator 80kVA, Genset Diesel 64kW
A-P110 / PRP: 80kVA , ESP: 88kVA
Main Specification:
Standby Power: 88kVA/66kW
Prime Power: 80kVA/64kW
Fuel Consumption 100%: 18.7L/H
Open Type Dimension (L×W×H): 1860 X 750 X 1200 mm
Weight: 1052KG
Silent Type Dimension (L×W×H): 2500 X 1080 X 1500 mm
Weight: 1500KG
Standby Power: 88kVA/66kW
Prime Power: 80kVA/64kW
Fuel Consumption 100%: 18.7L/H
Open Type Dimension (L×W×H): 1860 X 750 X 1200 mm
Weight: 1052KG
Silent Type Dimension (L×W×H): 2500 X 1080 X 1500 mm
Weight: 1500KG
Quantity
Standard Configurations
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.

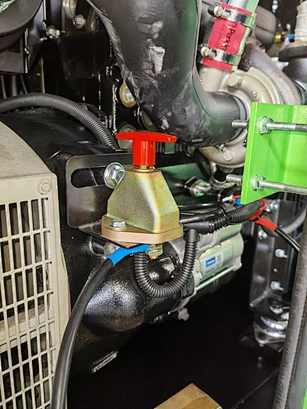

• Lockable battery isolator switch.
• Vibration isolators between the engine/alternator and base frame.
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
| Generator Set Specification | ||
| Model | A-P110-II | |
| Max. Power | kVA | 110 |
| kW | 88 | |
| Rate Power | kVA | 100 |
| kW | 80 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 144.3 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 1860 X 750 X 1200 |
| Weight For Open-type Genset | kg | 1090 |
| Dimension For Soundproof Genset | mm | 2500 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1790 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery for Starting | One of 80A Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Perkins Engines Company Limited | |
| Engine Brand | Perkins | |
| Engine Model | 1104A-44TG2 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 82.5 |
| Displacement | L | 4.4 |
| Compression Ratio | 17.25 : 1 | |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 127 |
| Lubrication Oil Capacity | L | 7 |
| Intake Air Flow | M3/Min | 5.28 |
| Fuel Consumption at 100% Load | L/H | 18.7 |
