Kofo Diesel Generator 20kVA, Kofo Genset Price Kofo
A-KF22 / PRP: 20kVA , ESP: 22kVA
Main Specification:
Standby Power: 22/18 (KVA/KW)
Prime Power: 20/16 (KVA/KW)
Consumption 100%: 6.12L/H
Open Type Dimension (L×W×H) : 1550 X 800 X 1350mm
Weight: 553KG
Silent Type Dimension (L×W×H) : 2100 X 900 X 1250mm
Weight: 790KG
Standby Power: 22/18 (KVA/KW)
Prime Power: 20/16 (KVA/KW)
Consumption 100%: 6.12L/H
Open Type Dimension (L×W×H) : 1550 X 800 X 1350mm
Weight: 553KG
Silent Type Dimension (L×W×H) : 2100 X 900 X 1250mm
Weight: 790KG
Quantity
Specification
Generator Set
Max. Power: 22kVA / 18kW
Rate Power 20kVA / 16kW
Frequency 50Hz
Rate Voltage 230/400V
Dimension For Open-type Genset: 1550 X 800 X 1350 mm
Weight For Open-type Genset: 530kg
Dimension For Soundproof Genset 2100 X 900 X 1250mm
Weight For Soundproof Generator 790kg
Rate Power 20kVA / 16kW
Frequency 50Hz
Rate Voltage 230/400V
Dimension For Open-type Genset: 1550 X 800 X 1350 mm
Weight For Open-type Genset: 530kg
Dimension For Soundproof Genset 2100 X 900 X 1250mm
Weight For Soundproof Generator 790kg
Engine
Engine Manufacturer: Shandong Kofo Co., Ltd.
Engine Brand: Kofo
Engine Model: N4100DS-30
No. of Cylinder: 4 Cylinder in line
Aspiration: Naturally Aspiration
Governor: Machanical
Engine Max. Output Power: 22kW
Engine Manufacturer: Shandong Kofo Co., Ltd.
Engine Brand: Kofo
Engine Model: N4100DS-30
No. of Cylinder: 4 Cylinder in line
Aspiration: Naturally Aspiration
Governor: Machanical
Engine Max. Output Power: 22kW
Alternator
Alternator Model: ASF184E
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
The 20kVA Kofo generator is the perfect solution for all of your power needs. With a Kofo genset, you can enjoy reliable and uninterrupted power supply, no matter the situation.
Our generators are made with the highest quality materials and are designed to withstand even the most extreme conditions. Whether you need a generator for your home or business, our Kofo genset is sure to meet your needs. Plus, with our quiet diesel generator technology, you can enjoy a peaceful environment while still getting the power you need.
Standard Configurations
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch..
• Vibration isolators between the engine/alternator and base frame
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.

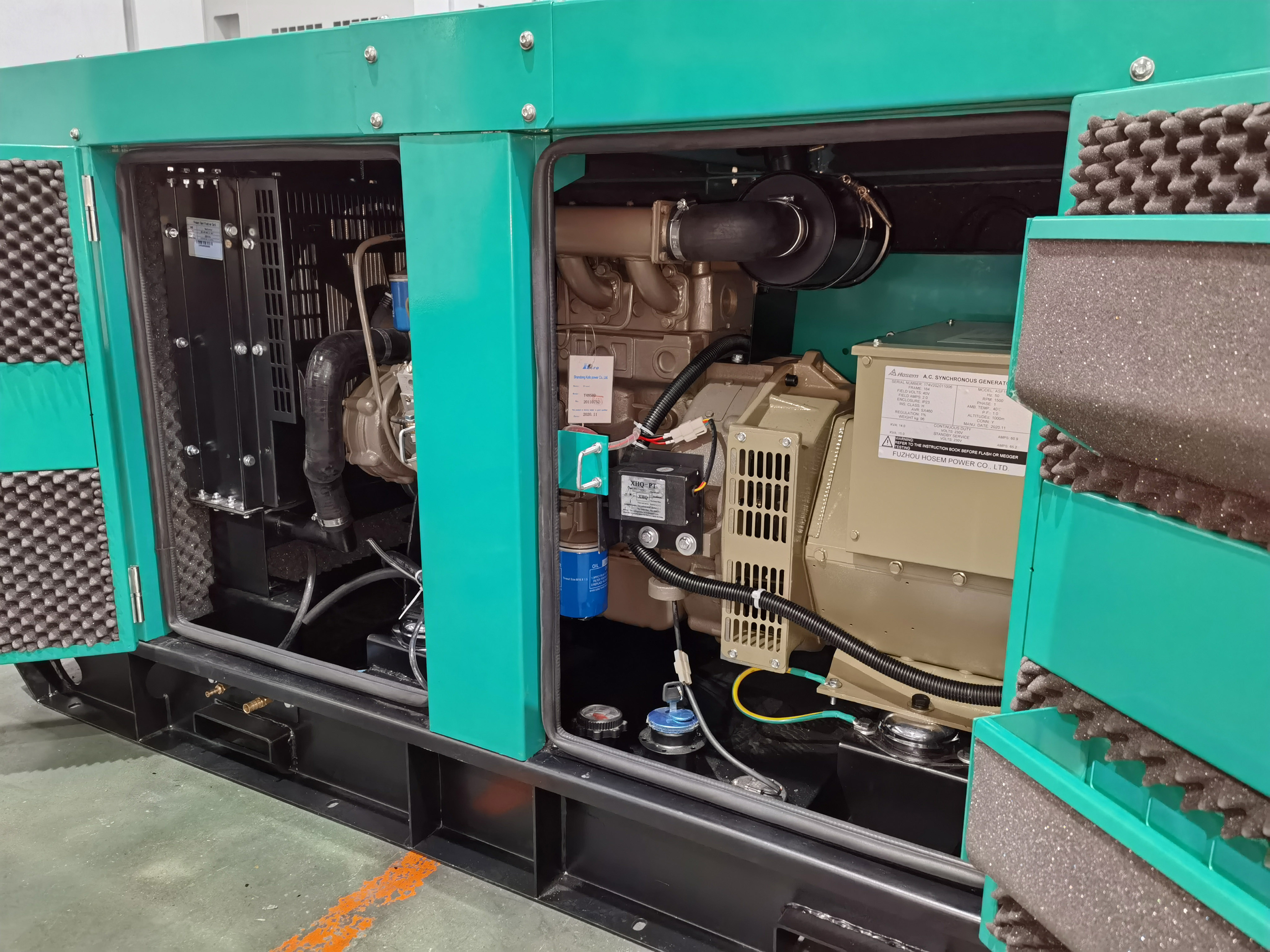

Details
Varta Brand Batteries High-efficiency Muffler Stainless Steel Door Lock Stainless Hinge
High-density Flame Retardant Lifting Ring and Step Ladder Forklift Holes Emergency Bottom
Sound-absorbing Cotton
