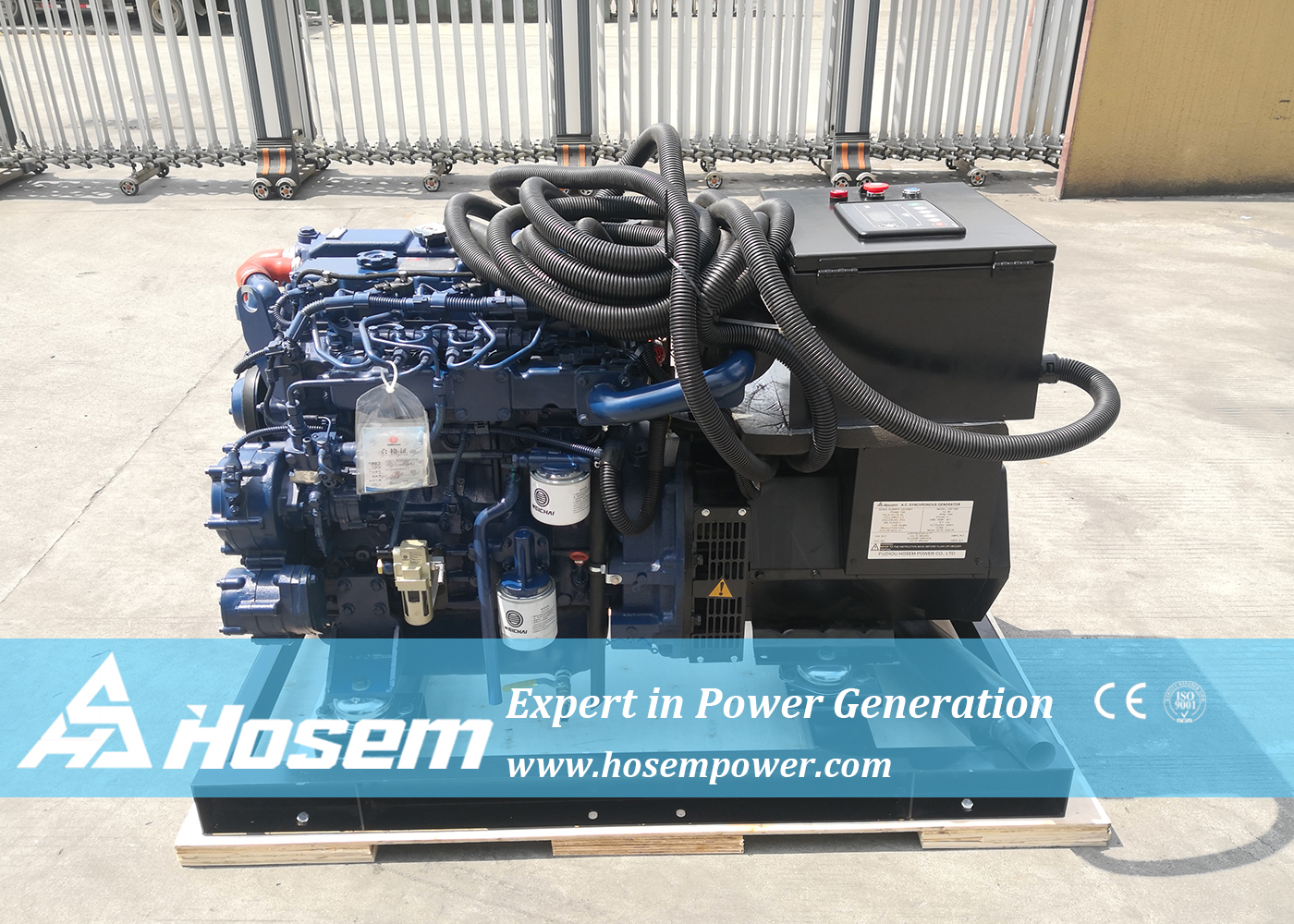

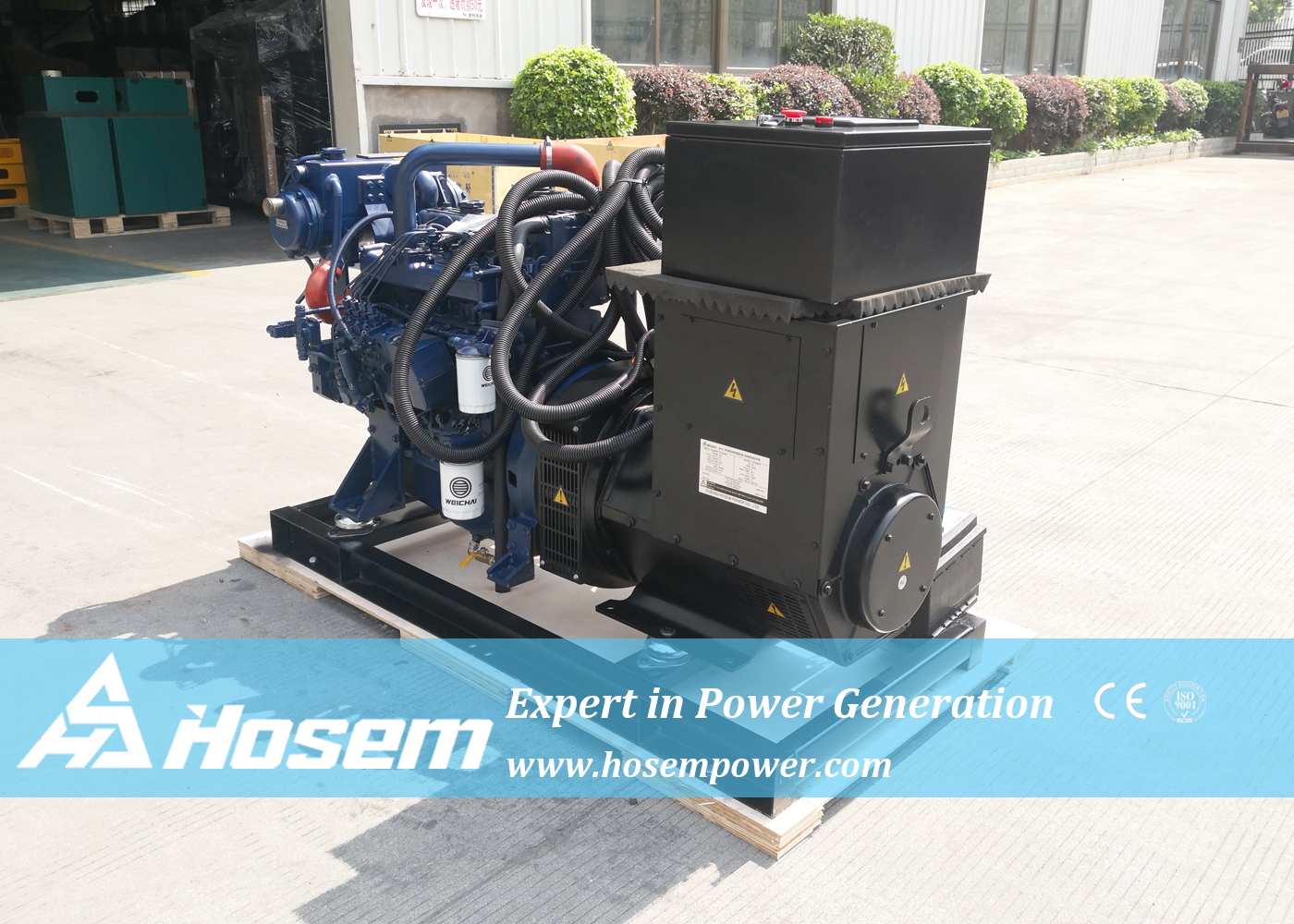

Weichai Marine Generator 15kW, 20kW, 25kW, 30kW, 50kW
A-WC22M / PRP: 20kVA , ESP: 22kVA
Main Specification:
Prime Power: 15kW to 60KW
Prime Power: 15kW to 60KW
Quantity
| Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | ||
| kVA | kVA | LXWXH(MM) | KG | ||||
| A-WC20M | - | - | 20 | 16 | WP2.3CD25E200 | 1240*700*1115 | 467 |
| A-WC25M | - | - | 25 | 20 | WP2.3CD25E200 | 1314*700*1165 | 480 |
| A-WC30M | - | - | 30 | 25 | WP2.3CD33E200 | 1500*1080*1180 | 1130 |
| A-WC38M | - | - | 38 | 30 | WP2.3CD40E200 | 1510*1080*1180 | 1150 |
| A-WC63M | - | - | 63 | 50 | WP4.1CD66E200 | 1695*1250*1180 | 1250 |
| A-WC80M | - | - | 80 | 64 | WP4.1CD83E200 | 1695*1250*1210 | 1350 |
| A-WC94M | - | - | 94 | 75 | WP4CD100E200 | 1695*1250*1210 | 1350 |
| A-WC125M | - | - | 125 | 100 | WP6CD132E200 | 2125*1250*1170 | 1640 |
| A-WC150M | - | - | 150 | 120 | WP6CD152E200 | 2180*1250*1170 | 1650 |
| A-WC188M | - | - | 188 | 150 | WP10CD200E200 | 2520*1250*1530 | 1950 |
| A-WC225M | - | - | 225 | 180 | WP10CD238E200 | 2520*1250*1550 | 1980 |
| A-WC250M | - | - | 250 | 200 | WP10CD264E200 | 2620*1250*1620 | 2100 |
| A-WC313M | - | - | 313 | 250 | WP12CD317E200 | 2650*1250*1660 | 2180 |
| A-WC375M | - | - | 375 | 300 | WP13CD385E200 | 2650*1250*1660 | 2300 |
| A-WC400M | - | - | 400 | 320 | WP13CD385E200 | 2650*1250*1660 | 2300 |
Specification:
Engine:
-The overhaul period of high-strength engine block, crankshaft, connecting rod and cylinder head is 12000h.
- Fresh/raw water heat exchanger with integrated thermostati.
- Self-priming raw water pump, mechanically driven, rubber impeller.
- Self-priming raw water pump, mechanically driven, rubber impeller.
- With shallow ω combustion chamber, the best cylinder clearance and swirl ratio, the fuel consumption rate is as low as 212g/kW•h
Alternator:
- Brushless, Self-excited, IP23, insulation class H alternator
-230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
-Frequency:<3%
-Frequency at stable state: <0.5%
-Frequency deviation at instantaneous state: ≤ +10%
-Frequency return time: ≤ 3s
-Voltage deviation at stable state: ≤ ± 1%
-Voltage deviation at instantaneous state: ≤ +20%
-Voltage return time: ≤ 4s
-Voltage modulation: ≤ 0.3%
-230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
-Frequency:<3%
-Frequency at stable state: <0.5%
-Frequency deviation at instantaneous state: ≤ +10%
-Frequency return time: ≤ 3s
-Voltage deviation at stable state: ≤ ± 1%
-Voltage deviation at instantaneous state: ≤ +20%
-Voltage return time: ≤ 4s
-Voltage modulation: ≤ 0.3%
Certificate:
Chinese Register of Shipping (CCS), Chinese Fisher Inspection Bureau (ZY) certificates, CE, ISO9001 approved
Testing Term:
All qualified generator sets are subjected to a comprehensive performance test which includes 50% load, 75% load, 100% load, 110% load and to check, and verify all control systems, alarm,s and shut-down protection etc.
Warranty:
1 year or 1500hours
Details

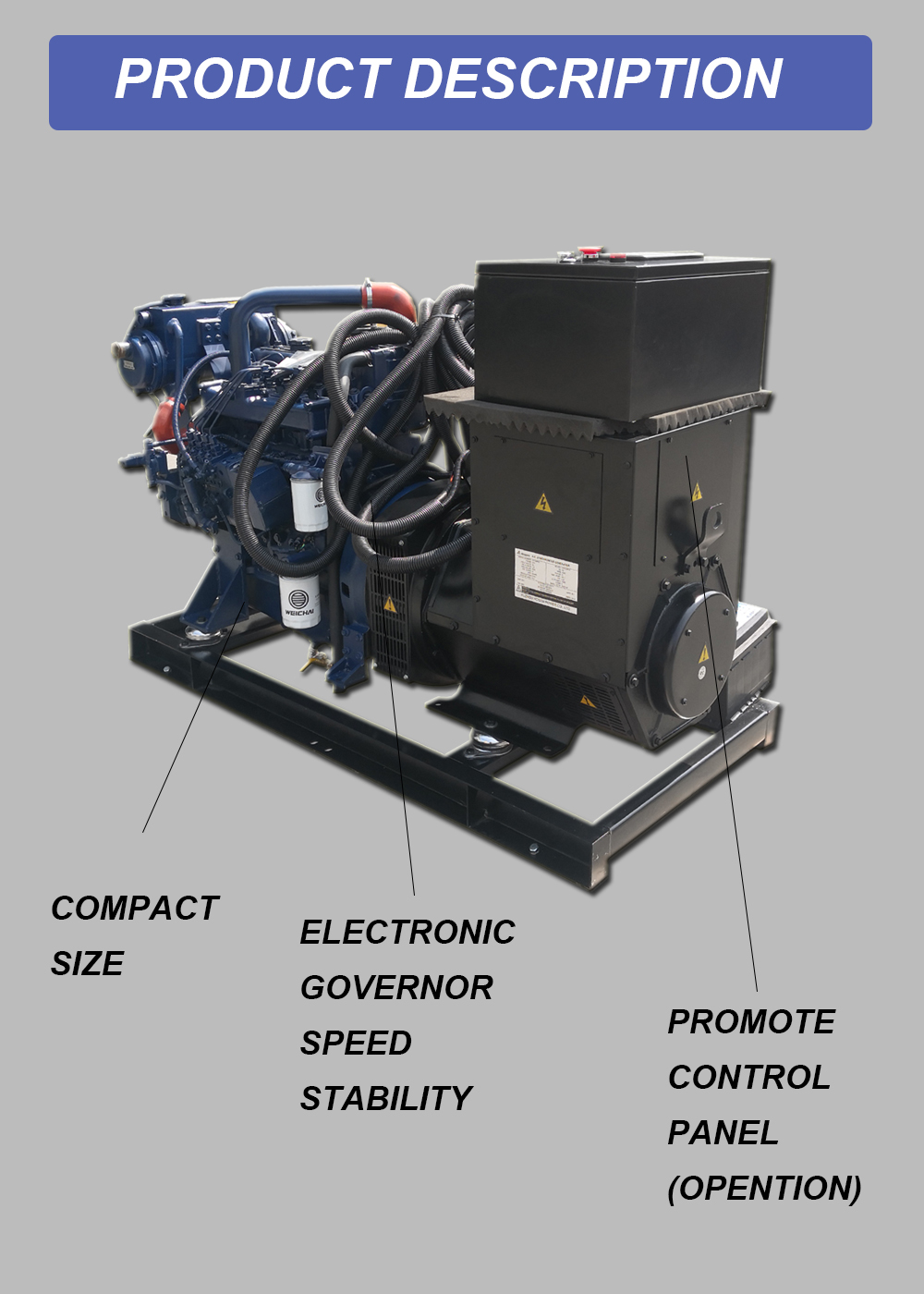

Weichai Marine Generator Built to withstand the harsh marine environment, this generator is specifically designed to provide the reliable power that boaters need for extended cruising, offshore fishing, and other demanding applications.
Weichai Marine Generators are available in a range of power outputs, making them suitable for a wide variety of boats, from small pleasure craft to large commercial vessels. With advanced control and monitoring systems, Weichai generators are easy to operate and offer excellent fuel efficiency, ensuring that you can get the power you need while minimizing fuel costs.
These generators are also designed with ease of maintenance in mind, with simple and accessible components that make servicing and repairs easy to carry out. In addition, Weichai offers a comprehensive support network, including spare parts and technical assistance, to ensure that you can get the most out of your generator for years to come.
Weichai Marine Generators are a reliable and efficient power solution for any boater. Experience the performance and quality that Weichai is known for and enjoy the peace of mind that comes with having a dependable source of power on board your vessel.
