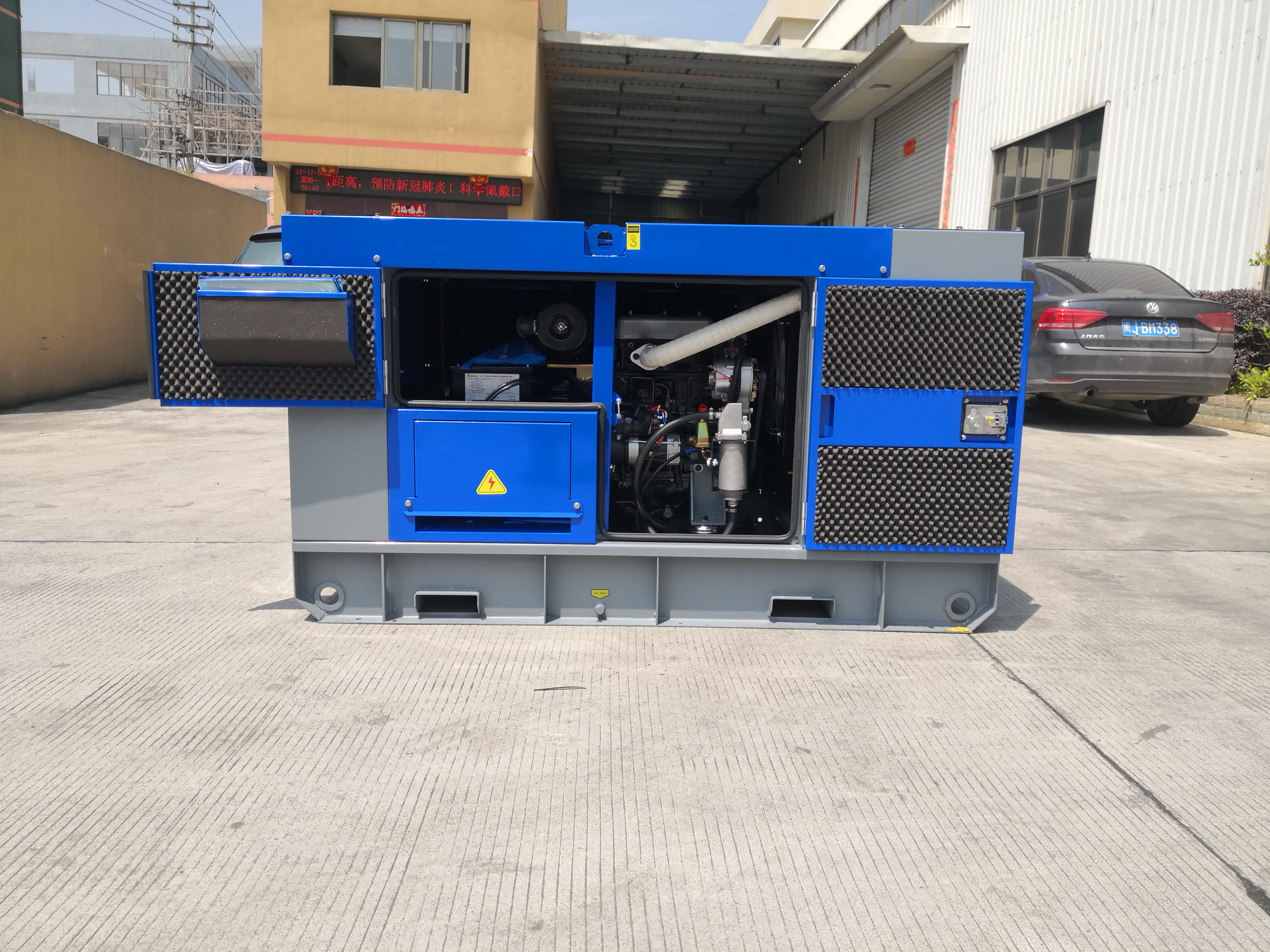

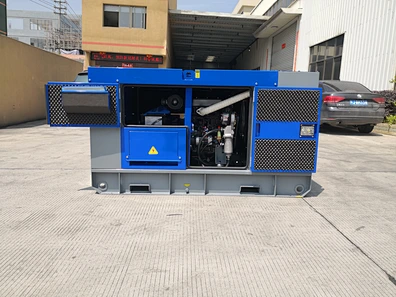

Yangdong Diesel Generator 20kVA, Yangdong Genset Price
A-YD22 / PRP: 20kVA , ESP: 22kVA
Main Specification:
Standby Power: 22/18 (KVA/KW)
Prime Power: 20/16 (KVA/KW)
Consumption 100%: 5.6L/H
Open Type Dimension (L×W×H) : 1270 X 700 X 1250mm
Weight: 550KG
Silent Type Dimension (L×W×H) : 1900 X 800 X 1150mm
Weight: 750KG
Standby Power: 22/18 (KVA/KW)
Prime Power: 20/16 (KVA/KW)
Consumption 100%: 5.6L/H
Open Type Dimension (L×W×H) : 1270 X 700 X 1250mm
Weight: 550KG
Silent Type Dimension (L×W×H) : 1900 X 800 X 1150mm
Weight: 750KG
Quantity
Specification
Generator Set
Max. Power: 22kVA / 18kW
Rate Power 20kVA / 16kW
Frequency 50Hz
Rate Voltage 230/400V
Dimension For Open-type Genset: 1270 X 700 X 1250mm
Weight For Open-type Genset: 550kg
Dimension For Soundproof Genset 1900 X 800 X 1150mm
Weight For Soundproof Generator 750kg
Rate Power 20kVA / 16kW
Frequency 50Hz
Rate Voltage 230/400V
Dimension For Open-type Genset: 1270 X 700 X 1250mm
Weight For Open-type Genset: 550kg
Dimension For Soundproof Genset 1900 X 800 X 1150mm
Weight For Soundproof Generator 750kg

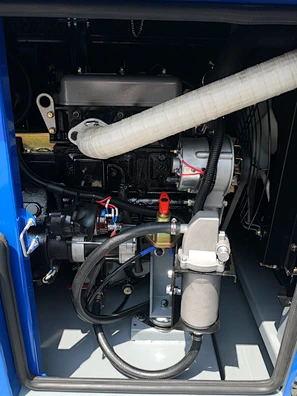

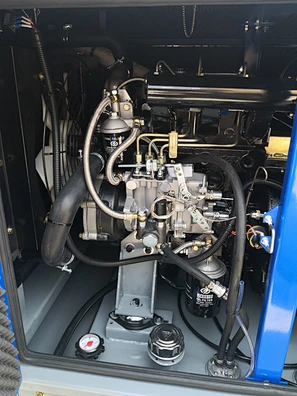

Engine
Engine Manufacturer: YANGDONG CO., LTD
Engine Brand: Yangdong
Engine Model: YSD490D
No. of Cylinder: 4 Cylinder in line
Aspiration: Naturally Aspiration
Governor: Machinical
Engine Max. Output Power: 21kW
Engine Manufacturer: YANGDONG CO., LTD
Engine Brand: Yangdong
Engine Model: YSD490D
No. of Cylinder: 4 Cylinder in line
Aspiration: Naturally Aspiration
Governor: Machinical
Engine Max. Output Power: 21kW
Alternator
Alternator Model: ASF184ES
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
Alternator Brand: Hosem
Insulation: Class H
Phase: 3 Phase
Automatic Voltage Regulation: SX460
Protection Grade: IP23
If you are looking for a reliable and cost-effective solution for home power backup, our Yangdong Generator 20kVA combined with a silent generator is a perfect choice.
The Yangdong Generator 20kVA offers a powerful and efficient performance, providing you with enough power to run essential appliances and electronics during power outages or in remote locations. Its compact and reliable design ensures a long lifespan and minimal maintenance requirements.
When combined with a silent generator, this generator set becomes even more practical for home use. The silent generator offers a low noise level and compact size, making it perfect for residential areas. It also offers a high fuel efficiency, ensuring you get the most out of your generator while minimizing fuel costs.
At our company, we offer a wide selection of silent generators that are compatible with the Yangdong Generator 20kVA, so you can choose the one that best fits your needs and budget. Our generators are built with high-quality materials and advanced technology, ensuring reliable and efficient performance for years to come.
Standard Configurations
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge.
• Alternator excitation system: self-excited (AREP and PMG are optional).
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch..
• Vibration isolators between the engine/alternator and base frame
• Integrated wiring design.
• Base fuel tank for at least 8 hours running.
• Equipped with an industrial muffler.
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type).
• Top lifting and steel base frame with forklift holes.
• Drainage for fuel tank.
• Complete protection functions and safety labels.
Optional Configurations:
• ATS (automatic transfer switch) receptacle.
• Remote control system.
• Virtual load cabinet.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
• Stainless galvanized zinc plates with strong corrosion resistance.
• Water jacket preheater, oil heater and double air cleaner, etc.
