Soundproof Perkins 13kw Diesel Generator
A-P14S
Standby Power: 14/11 (KVA/KW)
Prime Power: 13/10 (KVA/KW)
Engine Model: 403A-15G
Engine Speed: 1500 RPM
Alternator Model: ECP28-0S/4A
Starting System: Electric
Cylinder: 3 Cylinder in line
Fuel Type: Diesel
Dimension:1850 * 850 * 1100(L x W x H)
Weight: 603kg
minimum order: 1 unit
Supply Ability: 500 units / Month
Country of Origin: China
Stock Time: 30-35 Days
Prime Power: 13/10 (KVA/KW)
Engine Model: 403A-15G
Engine Speed: 1500 RPM
Alternator Model: ECP28-0S/4A
Starting System: Electric
Cylinder: 3 Cylinder in line
Fuel Type: Diesel
Dimension:1850 * 850 * 1100(L x W x H)
Weight: 603kg
minimum order: 1 unit
Supply Ability: 500 units / Month
Country of Origin: China
Stock Time: 30-35 Days
Quantity
Production Description
This 14kVA Perkins-powered silent generator combines trusted Perkins engine technology with low-noise design, delivering stable backup power for homes and light commercial applications. Equipped with a Deepsea controller for reliable operation and protection.
Generator Set Specification：
| Model | A-P14 | |
| Max. Power | kVA | 14 |
| kW | 11 | |
| Rate Power | kVA | 13 |
| kW | 10 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 18.0 |
| Fuel Tank Capacity | L | 50 |
| Dimension For Open-type Genset | mm | 1150 X 550 X 1200 |
| Weight For Open-type Genset | kg | 423 |
| Dimension For Soundproof Genset | mm | 1850 X 850 X 1100 |
| Weight For Soundproof Generator | kg | 603 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery for Starting | One of 60A Free Maintenance Battery | |
Engine Specification：
| Engine Manufacturer | Perkins Engines Company Limited | |
| Engine Brand | Perkins | |
| Engine Model | 403A-15G | |
| No. of Cylinder | 3 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 13.5 |
| Displacement | L | 1.5 |
| Compression Ratio | 22.5 : 1 | |
| Starting Voltage | V | 12 |
| Bore | mm | 84 |
| Stroke | mm | 90 |
| Lubrication Oil Capacity | L | 6 |
| Intake Air Flow | M3/Min | 1.1 |
| Fuel Consumption at 100% Load | L/H | 3.67 |
Alternator Specification：
| Alternator Manufacturer | Cummins Generator Technologies | |
| Alternator Model | PI 044F | |
| Alternator Brand | Stamford | |
| Rate Output | kVA | 12 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Phase | 3 Phase | |
| Working Temperature without power decrease | ≤40℃ | |
| Working Altitude without power decrease | ≤1000m | |
| Automatic Voltage Regulation | SX480 | |
| Protection Grade | IP23 | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |

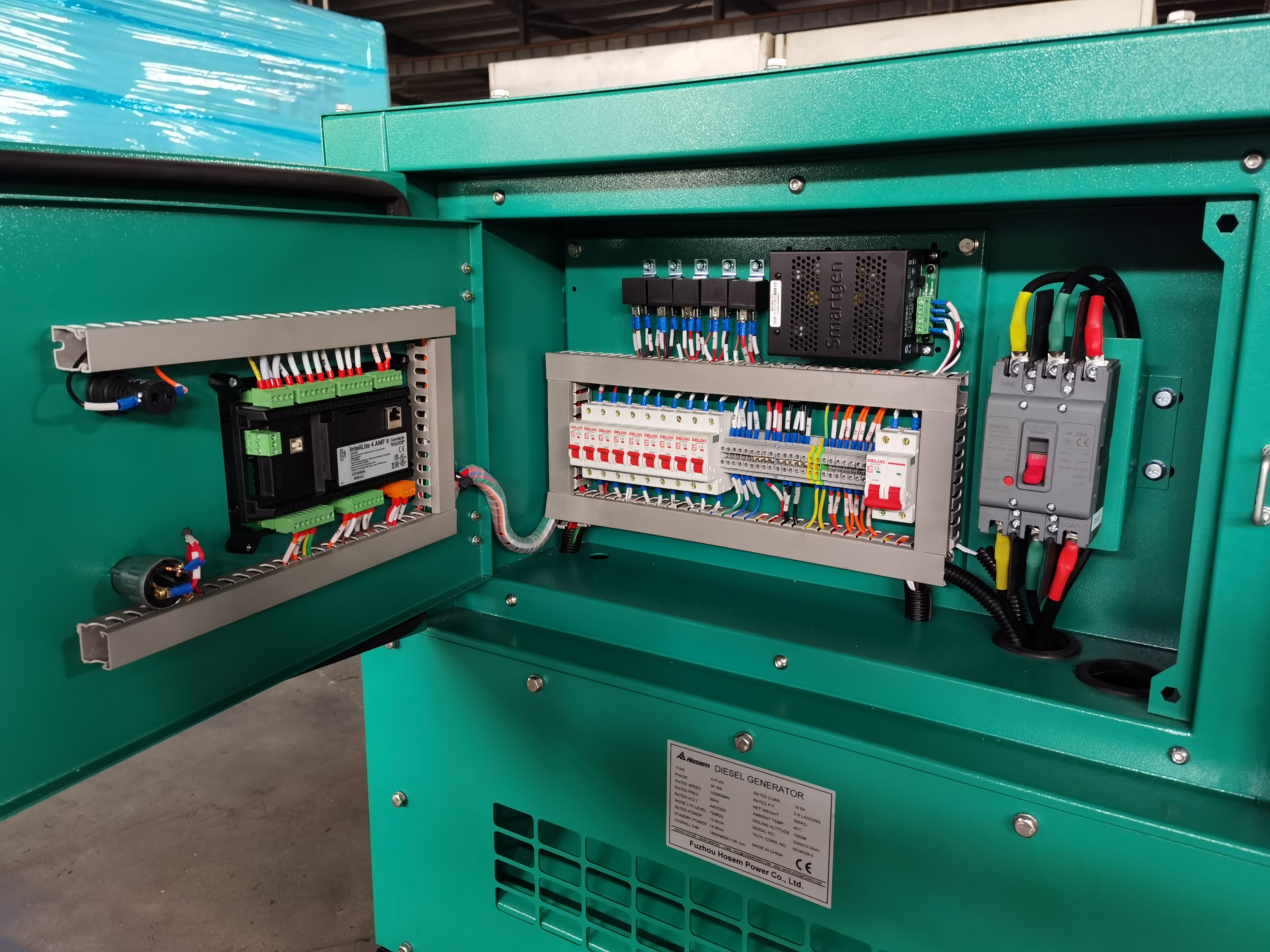

Control Panel Specification：
| Controller Brand | Deepsea | |
| Controller Model | DSE7320 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 20 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Generator Details:
FQA：
Q1: What are the key application scenarios for your 13kVA Perkins diesel generator with soundproof canopy?
A: This reliable Perkins genset is ideal for residential backup power, small business use, and light commercial applications. It provides stable, continuous power for homes, offices, shops, and remote work sites in both indoor and outdoor environments.
Q2: Which engine model drives this 13kVA unit, and what makes it ideal for long-term reliable operation?
A: It is equipped with the genuine Perkins 403A-15G engine—a 3-cylinder in-line naturally aspirated design. Featuring low fuel consumption (3.67L/h at full load), proven durability, and stable performance, it delivers consistent power output even in everyday use.
Q3: What noise level does the soundproof Perkins generator achieve, and where is it best suited?
A: Our soundproof canopy design reduces noise to 72 dBA at 7 meters, making this quiet Perkins diesel generator perfect for noise-sensitive environments like residential neighborhoods, small offices, schools, and commercial spaces.
Q4: What optional features can we add to this 13kVA soundproof Perkins generator set?
A: Optional configurations include ATS (automatic transfer switch), remote monitoring system, extended fuel tank, Deep Sea controller, brushless alternator, and enhanced protection features to meet your project-specific power needs.
Q5: Can we customize this Perkins diesel generator to fit our project requirements?
A: Our experienced technical team can fully customize the unit to your specifications, including open/soundproof type, alternator brand selection, control panel options, color, and other functional modifications tailored to your project.
