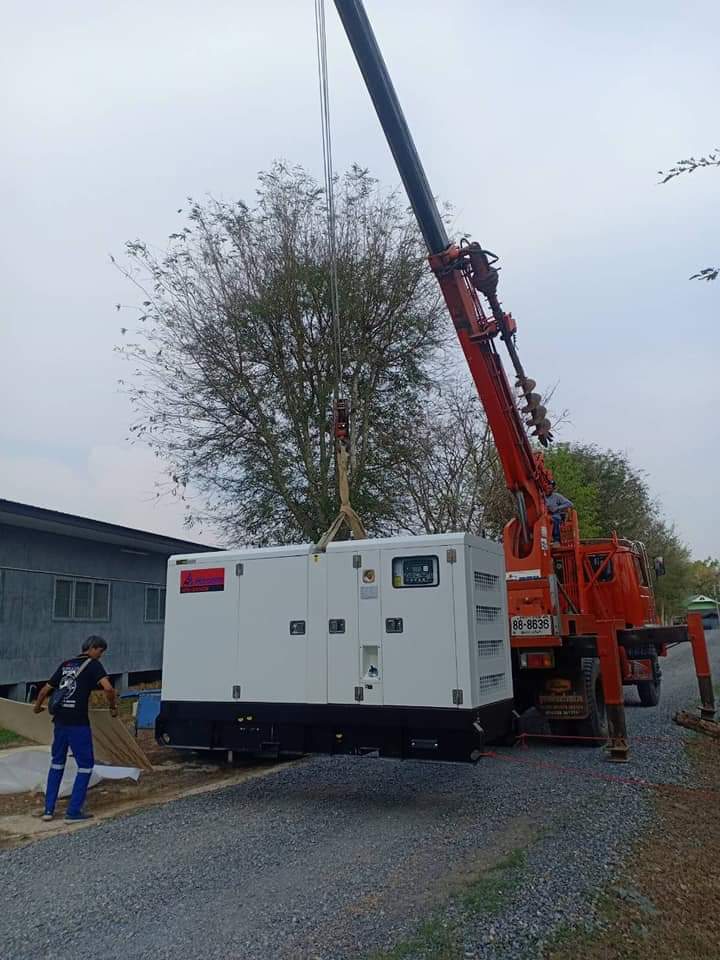

100kVA Cummins Generator Set for Farm in Thailand
author: Jack Zheng
2019-12-05
Specification of 100kVA Cummins Industrial Generator
| Model | A-C100 | |
| Max. Power | kVA | 100 |
| kW | 80 | |
| Rate Power | kVA | 90 |
| kW | 72 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 129.9 |
| Fuel Tank Capacity | L | 188 |
| Dimension For Open-type Genset | mm | 2180 X 820 X 1200 |
| Weight For Open-type Genset | kg | 1200 |
| Dimension For Soundproof Genset | mm | 2900 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1700 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of 80Amps Free Maintenance Battery | |
Technical Specification for Cummins Diesel Engine:
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Engine Brand | Cummins | |
| Engine Model | 6BT5.9G1 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 94.6 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | L/S | 100 |
| Fuel Consumption at 100% Load | L/H | 21.7 |
Technical Specification for Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies | |
| Alternator Model | UCI 274 C | |
| Alternator Brand | Stamford | |
| Rate Output | kVA | 100 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Automatic Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |
